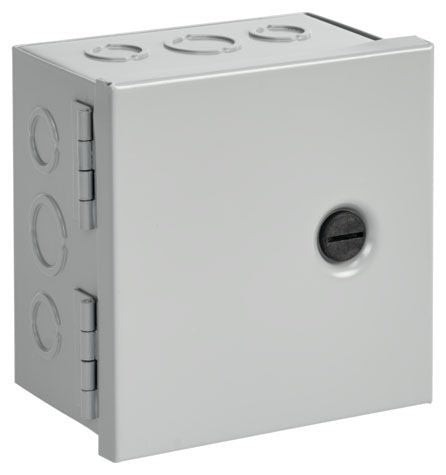

Hoffman Enclosures AHE12X12X6 Enclosure Hinged Cover

Various Sizes of Easily Removable Concentric Knockouts on All Four Sides; Butt Hinges; Mounting Holes on Back of Box; Provision for Grounding; RoHS/REACH Compliant

Specifications:

Type: Unflanged
Height: 12 Inch
Width: 12 Inch
Depth: 6 Inch
Material: Steel
Material Specification: 16/14 Gauge
Finish: Polyester Powder Painted
Color: ANSI 61 Gray
Enclosure: NEMA 1, IP30
Cover Type: Butt Hinged, Slotted Flush Latch
Knockout Location: (5) Sides, (5) Ends
Number of Knockouts: 10
Knockout Size: (2) (1/2 to 3/4 Inch), (2) (3/4 to 1 Inch), (1) (1 to 1-1/4 Inch) Concentric Knockout Sides, (2) (1/2 to 3/4 Inch), (2) (3/4 to 1 Inch), (1) (1 to 1-1/4 Inch) Concentric Knockout Ends
Approval: UL 50/50E, CUL, CSA C22.2
