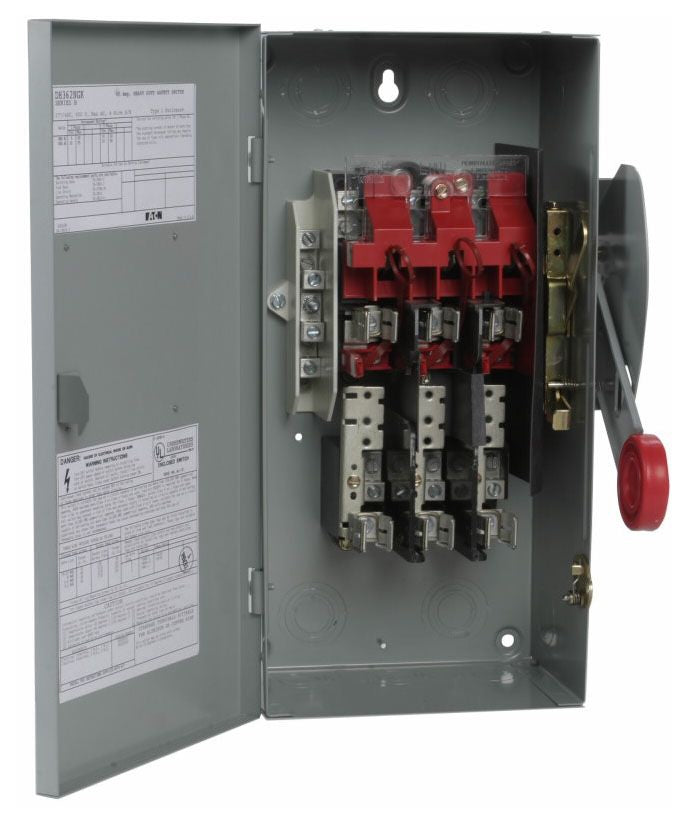

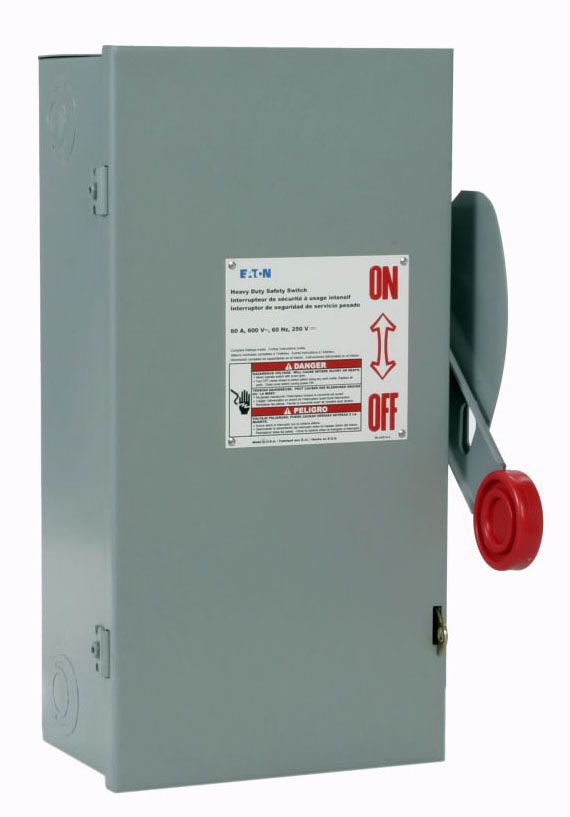

Visible Double-Break Rotary Blade Mechanism Two Points of Contact Provide a Positive Open and Close, Easier Operation, and also Help Prevent Contact Burning for Longer Contact Life; Clearly Visible Handle the Position (On or Off) Can be Clearly Seen from a Distance and the Length Provides for Easy Operation; Interlocking Mechanism Door Cannot be Opened when the Handle is in the on Position; Front and Side Operable Defeater Mechanism Provides for User Access when Necessary on Single-Throw Switches; Clear Line Shield Protects Against Accidental Probe Holes Enable tee User to Test if the Line Side is Energized without Removing the Shield; Triple Padlocking Capability Personnel Safety Feature be cause the Large hasp can Accommodate up to Three 3/8-Inch (9.5 MM) Shank Locks; Tangential Knockout

Specifications:

Type: Heavy Duty
AC Voltage Rating: 480 V Star/277 V, 600 V Star/347 V
DC Voltage Rating: 250 V
Current Rating: 60 Ampere
Power Rating: 20 HP at 480 VAC 1-Phase, 25 HP at 600 VAC 1-Phase, 30 HP at 480 VAC 3-Phase, 50 HP at 600 VAC 3-Phase (Time Delay Fuse)
Number of Poles: 3
Number of Wires: 4
Fuse Provision: Fusible
Fuse Type: Cartridge, Class H, Time Delay
Neutral Type: Solid
Enclosure: NEMA 1
Size: 8.13 Inch W x 10 Inch D x 15.88 Inch H
Enclosure Material: Steel
Finish: Painted
Approval: UL 98
