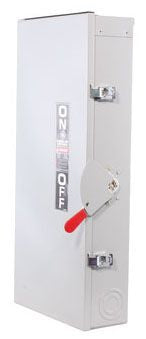

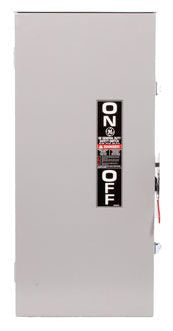

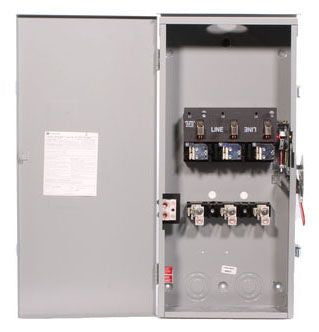

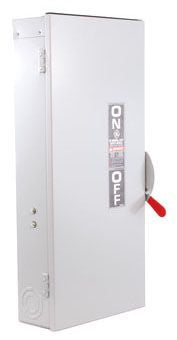

Designed for Commercial and Industrial Applications Where Safety, High Performance and Continuity of Service are Essential; Listed to UL Standard 98 Enclosed and Dead Front Switches; Suitable for Use as Service Equipment When Installed in Accordance with the National Electrical Code; Certified to CSA Standard 22.2 No. 4-04 Enclosed and Dead Front Switches; Meets or Exceeds NEMA KS1 Standard for Enclosed Switches, Type HD; 60/75 C Conductor Rating; Full Cover Interlocks; Donut Handle Ideal for Hook Stick Operation and Accepts 3 Padlocks in the Off Position; Direct-Drive, Quick-Make, Quick-Break Mechanism "Snaps" Contacts Open and Closed Providing Positive On/Off Indication; Self-Leveling, Three-Point Mounting System; Coin-Proof, Defeatable Interlock; Clear Line Shield Installed on All Heavy Duty 30-200 Amp, 600V, All Enclosure Types; Visible Confirmation of Plated Blade Contact Positions; Spring Reinforced Fuse Clips Assure Reliable Contact for Cool Operation; Seismic Certified; GSA Compliant

Specifications:

Type: Heavy Duty Safety
AC Voltage Rating: 240 Volt
DC Voltage Rating: 250 Volt
Current Rating: 200 Amp
Power Rating: 15 HP at 240 Volt AC 1-Phase, 25 HP at 240 Volt AC 3-Phase (NEC Standard), 60 HP at 240 Volt AC 3-Phase (Time Delay), 40 HP at 250 Volt DC (Standard)
Number of Poles: 3
Number of Wires: 4
Fuse Provision: Fusible
Fuse Type: Class H/K/J/R
Neutral Type: Solid
Enclosure: NEMA 3R, Outdoor
Size: 14.3 Inch Width x 9.5 Inch Depth x 31.7 Inch Height
Approval: UL 98, CUL, CSA C22.2
