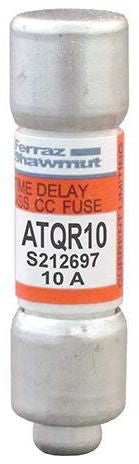

Mersen EP ATQR10 Time Delay Fuse
Regular price
$15.91
Couldn't load pickup availability
ATQR small-dimension fuses feature time-delay characteristics ideally suited for the high inrush currents of control transformers, solenoids, and similar inductive loads. Mersen's Amp-Trap 2000 ATQR fuses provide superior protection for the branch circuits of electrical distribution systems.
Specifications:
Type: Class CC Rejection
Characteristics: Time Delay
Voltage Rating: 600 Volt AC, 300 Volt DC
Current Rating: 10 Amp
Interrupting Rating: 200 Kiloamp (AC), 100 Kiloamp (DC)
Terminal Type: Ferrule
Diameter: 0.41 Inch
Length: 1.5 Inch
Approval: UL 248/248-4, CSA C22.2
