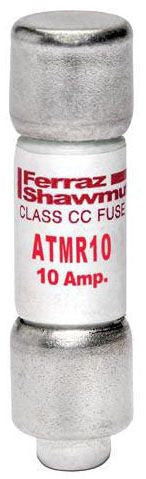

Amp-Trap ATMR fast-acting fuses are the smallest dimension 600V fuses suitable for branch-circuit protection. The ATMR is a popular choice for economical protection of control circuits and control circuit transformers where available short circuit currents exceed 10,000 amperes. ATMR's rejection dimensions prevent substitution by lesser rated fuses. These fast-acting fuses give current-limiting protection to general circuits.

Specifications:

Type: Class CC Rejection
Characteristics: Fast Acting
Voltage Rating: 600 Volt AC/DC
Current Rating: 10 Amp
Interrupting Rating: 200 Kiloamp (AC), 100 Kiloamp (DC)
Terminal Type: Ferrule
Diameter: 0.41 Inch
Length: 1.5 Inch
Approval: UL 248/248-4, CSA C22.2
