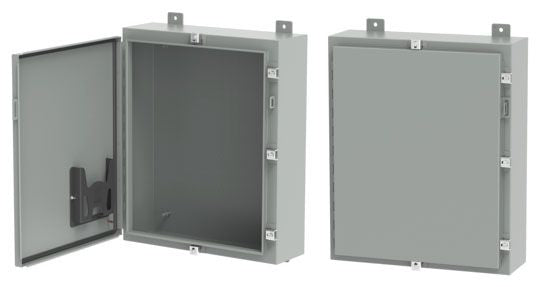

Hoffman Enclosures A30H24DLP Wall Mount Enclosure
Couldn't load pickup availability
These single-door enclosures feature a hinged door with clamps on three sides to create a secure seal in indoor or outdoor environments. The gray polyester powder finish inside and out provides enhanced corrosion protection in outdoor applications.
Specifications:
Type: 1-Door
Height: 30 Inch
Width: 24 Inch
Depth: 12 Inch
Material: Mild Steel
Material Specification: 14 Gauge
Color: ANSI 61 Gray
Finish: Polyester Powder Painted
Cover Type: Continuous Hinged, (5) Stainless Steel Screw-Down Door Clamp, Heavy Gauge Continuous Hinge Pin, Seamless Foam-In-Place Gasketed, Padlockable Hasp and Staple
Back Panel: A30P24, A30P24G
Enclosure: NEMA 3/4/12/13, IP66
Mounting: Wall, External Welded-On Bracket
Service Type: Indoor/Outdoor
Approval: UL 508A, CUL, CSA C22.2
