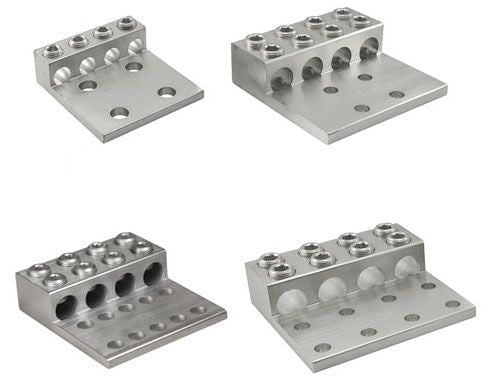

Ilsco T4A4-350N Mechanical Lug

Provides Low Contact Resistance; Provides Ease of Installation; Application Versatility; Must be Mounted with a Minimum of 4 Bolts; Suitable for Use in Circuits Rated 35 kV or Less, Proper High Voltage Spacing and Insulation Techniques Must be Used; RoHS Compliant

Specifications:

Type: Chamfered Wire Entry
Number of Conductors: 4
Minimum Conductor Size: 6 AWG
Maximum Conductor Size: 350 KCMIL
Conductor Material: Aluminum/Copper
Pad Type: Straight
Screw Type: 5/16 Inch Hex
Material: Electro-Tin Plated High Strength 6061-T6 Aluminum Alloy
Number of Pad Holes: 4
Pad Size: 3 Inch L x 4-1/64 Inch W x 5/16 Inch Thk
Stud Size: 1/2 Inch
Overall Length: 4-5/16 Inch
Approval: UL 453G, UL 486A/B, CSA
