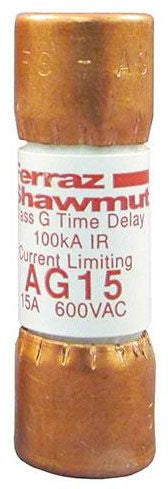

The Mersen Amp-Trap AG fuse series is a complete line of Class G fuses. AG fuses safely fit a wide variety of applications. Class G fuses are made in four physical sizes and provide superior branch- circuit protection for lighting, heating and appliance circuits.

Specifications:

Type: Class G
Characteristics: Time Delay, Current Limiting
Voltage Rating: 600 Volt AC
Current Rating: 15 Amp
Interrupting Rating: 100 Kiloamp (AC)
Terminal Type: Ferrule
Diameter: 0.406 Inch
Length: 1.31 Inch
Approval: UL 248-5, CSA C22.2
