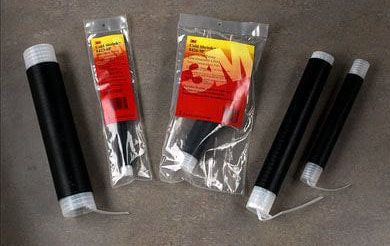

3M 8428-12 Cold Shrink Connector Insulator

Only 2 left
SKU: 42752
Regular price $48.25

3Mâ„¢ Cold Shrink Connector Insulators 8420 Series are Designed Using 3M Proprietary Cold Shrink Delivery System; Removal of the Core after Positioning the Splice Allows the Product to Shrink into Position Forming a Moisture-Tight Seal; The Live Memory Action of the Specially Formulated Perm Material Promotes a Permanent, Durable Environmental Seal and Insulation, with a Typical Operating Temperature Range from-40 to 194 Deg F; RoHS Compliant

Specifications:

Type: In-Line
Voltage Rating: 1 Kilovolt
Cable Type: Tape/Wire Shield, Unishield
Number of Conductors: 1
Insulator Type: Cold Shrink, EPDM Rubber
Connector Type: Sleeve
Conductor Size: 500 to 800 KCMIL
Cable Insulation Outer Diameter: 0.95 to 1.94 Inch
Contents: Adapter, Mastic Pad
