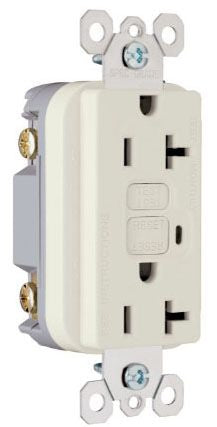

Pass & Seymour 2095LA GFCI Receptacle

  • Sale
  • Regular price $15.70
Shipping calculated at checkout.


Safelock Protection: if Critical Components are Damaged and Ground Fault Protection is Lost, Power to Receptacle is Disconnected; Prevents Line-Load Reversal Miswire: No Power to the Face or Downstream Receptacles if Wired Incorrectly; Exceeds Ul943 Voltage Surge Requirements; Survives 100X the Required UL 3Ka/6Kv Voltage Surge Test Cycles; Trip Indicator Light (Red Led); Side or Internal Screw Pressure Plate Back Wire with #10 to #14 AWG Solid or Stranded Copper Wire; Two Back Wire Holes Per Terminal; Ground Screw has a Back Wire Clamp for Easy Installation; 1/4 Inch Thinner than Competitors GFCI'S; Leaves More Room for Wires in the Box; Mounting Screws are Shipped Captive in the Device and Wall Plate for Easier Installation; Extra Long Strap; Dual-Direction Test and Reset Buttons; Supplied with Matching Tp26 Nylon Wall Plate; Button Colors Match the Device Face; Tri-Drive Screws; GFCI'S with Auto-Ground Assure a Positive Ground to Metal Box

Specifications:

Type: Duplex
Configuration: 5-20R
Voltage Rating: 125 Volt AC at 60 Hertz
Current Rating: 20 Amp
Number of Poles: 2
Number of Wires: 3
Material: High Impact Resistant Thermoplastic
Color: Light Almond
Wiring: Back
Grade: Specification
Approval: UL 498/943, UL (Canada and US), CUL, CSA C22.2, FSUL WC596
