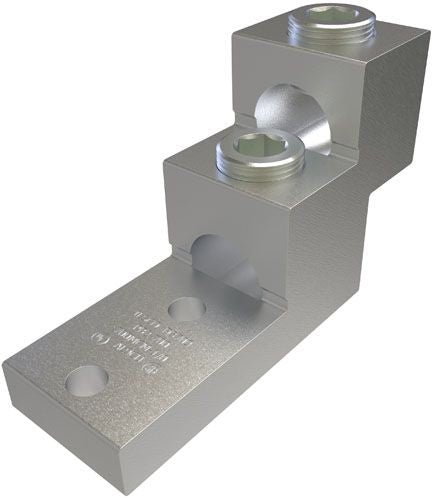

Ilsco PB2-750 Panelboard Lug

Provides Low Contact Resistance; Provides Ease of Installation; Saves Space and Reduces Installation Time; Application Versatility; Suitable for Use in Circuits Rated 35 Kilovolt or Less, Proper High Voltage Spacing and Insulation Techniques Must be used; RoHS Compliant

Specifications:

Type: Chamfered Wire Entry/Stacked
Number of Conductors: 2
Minimum Conductor Size: 1/0 AWG
Maximum Conductor Size: 750 KCMIL
Conductor Material: Aluminum/Copper
Pad Type: Straight
Screw Type: 1/2 Inch Hex
Material: Electro-Tin Plated High Strength 6061-T6 Aluminum Alloy
Number of Pad Holes: 2
Pad Size: 2-11/32 Inch L x 1-11/16 Inch W x 5/8 Inch Thk
Stud Size: 3/8 Inch
Overall Length: 4-29/32 Inch
Approval: UL 453G, UL 486A/B, CSA
