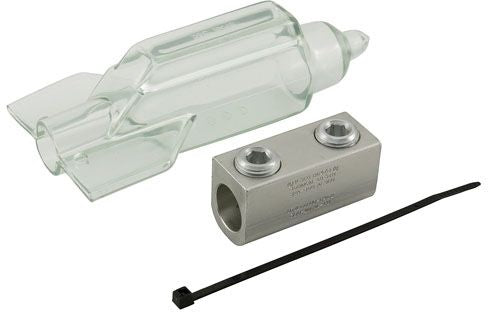

Ilsco SPAR-2 Insulated Splicer/Reducer Connector

Transparent Flexible Insulating Cover; Range Adjustable Trim-To-Fit Tip; Unique Shape and Compact Design; Connector, Cover and Cable Tie Packaged Together; Dual-Rated for Copper or Aluminum Conductor; No Taping and Allows Visual Inspection of Splice; Ensures Proper Fit of Cover to Cable; Provides Ease of Installation, Versatility and Serviceability of Connections Made in Tight Spaces; Provides Ease of Ordering; Ensures Reliability; RoHS Compliant

Specifications:

Type: In-Line
Voltage Rating: 600 V
Minimum Conductor Size: 14 AWG
Maximum Conductor Size: 2 AWG
Conductor Material: Aluminum/Copper
Number of Screws: 2
Size: 3.83 Inch L x 1.75 Inch W x 0.95 Inch H
Insulation Type: Clear Insulated
Approval: UL 453G, UL 486A/B, CSA
