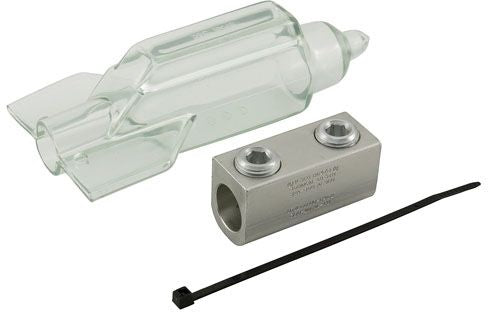

Ilsco SPAR-250 Insulated Splicer/Reducer Connector

Transparent Flexible Insulating Cover; Range Adjustable Trim-To-Fit Tip; Unique Shape and Compact Design; Connector, Cover and Cable Tie Packaged Together; Dual-Rated for Copper or Aluminum Conductor; No Taping and Allows Visual Inspection of Splice; Ensures Proper Fit of Cover to Cable; Provides Ease of Installation, Versatility and Serviceability of Connections Made in Tight Spaces; Provides Ease of Ordering; Ensures Reliability; RoHS Compliant

Specifications:

Type: In-Line
Voltage Rating: 600 V
Minimum Conductor Size: 6 AWG
Maximum Conductor Size: 250 KCMIL
Conductor Material: Aluminum/Copper
Number of Screws: 2
Screw Size: 5/16 Inch Dia
Size: 5.67 Inch L x 2.41 Inch W x 1.29 Inch H
Insulation Type: Clear Insulated
Approval: UL 453G, UL 486A/B, CSA
