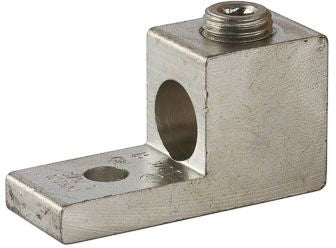

Versatile and Reusable Set-Screw Connectors Made of 6061T-6 Aluminum Alloy; Electro Tin Plated for Low Contact Resistance; For Use with Copper/Aluminum Conductors

Specifications:

Type: Set Screw
Number of Conductors: 1
Minimum Conductor Size: 350 KCMIL
Maximum Conductor Size: 1000 KCMIL
Conductor Material: Aluminum/Copper
Pad Type: Straight
Screw Type: 9/16 Inch Hex Socket
Material: Aluminum
Number of Pad Holes: 1
Pad Size: 1.75 Inch L x 1.69 Inch W x 0.44 Inch Thk
Stud Size: 0.531 Inch
Overall Length: 3.25 Inch
Approval: UL (Canada and US)
