Juno Lighting IC1P Incandescent Housing

Out of stock
SKU: 46096
Regular price $37.63
OR

The energy-efficient, Air-Loc sealed double wall construction housing stops infiltration and exfiltration of air, reducing heating and cooling costs without an extra gasket. The 4-inch IC housing is optimized for PAR20 gimbal and higher wattage 120-volt MR16 lamps and can be completely covered with insulation.

Specifications:

Type: Double Wall Miniature Recessed Universal Housing
Air Rating: Airtight
Lamp Type: K19/R14/R16/R20/PAR16/PAR20/GU10
Lamp Wattage: 75 W
Lamp Mounting Position: Vertical
Nominal Aperture Size: 4 Inch
Aperture Shape: Round
Ceiling Type: Insulated
Ceiling Opening Size: 4-1/2 Inch
Installation: New Construction

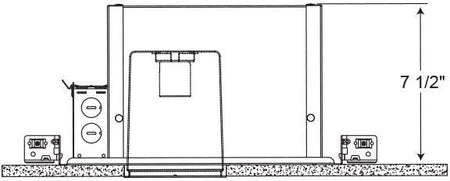

Height: 7-1/2 Inch
Housing Material: 0.032 Inch Thk Aluminum Housing, 22 Gauge Die Formed Galvanized Steel Frame
Junction Box Type: Pre Wired with (6) 1/2 Inch, (1) 3/4 Inch Knockout, (6) 12 AWG 90 Deg C Branch Circuit Conductor, (4) Non-Metallic Sheathed Cable Connector
Application: Damp Location
Approval: UL, CUL
