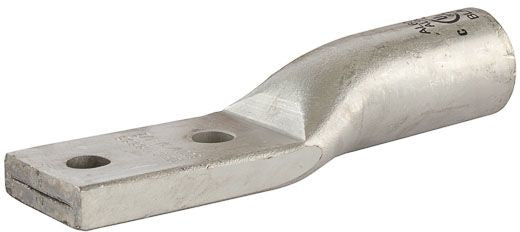

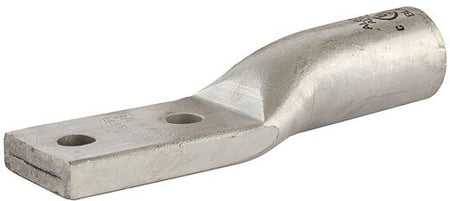

Produced from High Conductivity Aluminum Tubing; Electro Tin Plated for Corrosion Resistance; Color Coded and Marked with Die Index Information; Pre-Filled with Oxide Inhibitor and Capped with Color Coded Cap; Listed for 35 Kilovolt Maximum when Properly Installed to Cable Manufactures Specifications

Specifications:

Voltage Rating: 600 V to 35 KV
Conductor Material: Aluminum/Copper
Conductor Size: 600 KCMIL
Barrel Type: Standard
Barrel Length: 2.6 Inch
Pad Size: 3.12 Inch L x 1.96 Inch W x 0.51 Inch Thk
Number of Pad Holes: 2
Pad Hole Spacing: 1.75 Inch
Stud Size: 1/2 Inch
Color: Black
Die Index: 17/473/106
Material: Electro Tin Plated Aluminum
Overall Length: 6.75 Inch
Approval: UL 486A/B, UL (Canada and US)
