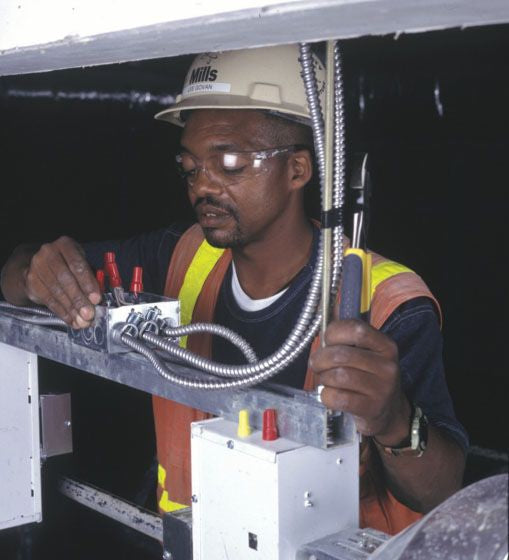

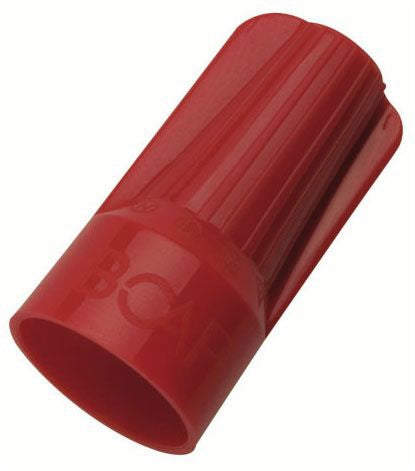

The B-CAP Wire Connector gets you into those hard-to-reach spots comfortably, especially when you're retrofitting or updating. The contoured classic fin design provides a secure grip for extra torque, while the expanding interior spring accepts a wide range of wire sizes and combinations. Three models cover from 22 through 6 AWG.

Specifications:

Type: Fin
Voltage Rating: 600 V
Wire Type: Copper
Wire Size: 22 to 8 AWG
Minimum Wire Combination Size: (2) #18
Maximum Wire Combination Size: (5) #12
Spring Type: Square Wire, Live Action
Color: Red
Temperature Rating: 105 Deg C
Standard Package: 500 per Jar
Approval: UL, CSA, CE
