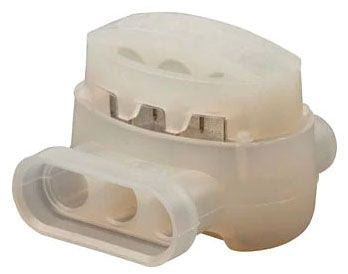

Scotchlok 314U-BOX Pigtail Connector

  • Sale
  • Regular price $0.72
Shipping calculated at checkout.


3Mâ„¢ Scotchlokâ„¢ Self-Stripping, Moisture Resistant Electrical Pigtail Connector 314 provides a moisture-resistant seal. The 3Mâ„¢ Scotchlokâ„¢ Electrical Connector IDC 314U is a self-stripping, flame retardant, electrical pigtail connector for dry environment applications. The 3Mâ„¢ Scotchlokâ„¢ Electrical Connector IDC 316-IR provides a moisture-resistant seal and are recommended for use with low energy underground circuit wires, sprinkler systems, landscape lighting or other moisture-resistance wires for applications of less than 30 V. Its sealant is a mineral oil-based grease.

Specifications:

Voltage Rating: 600 Volt
Wire Type: Tinned/Untinned Copper
Wire Size: 22 to 14 AWG Solid/Stranded
Connection Type: Self-Strip Pigtail
Maximum Insulation: 0.155 Inch
Color: White
Temperature Rating: 221 Deg F
Standard Package: 500 per Box
Approval: UL 486C, CSA C22.2
