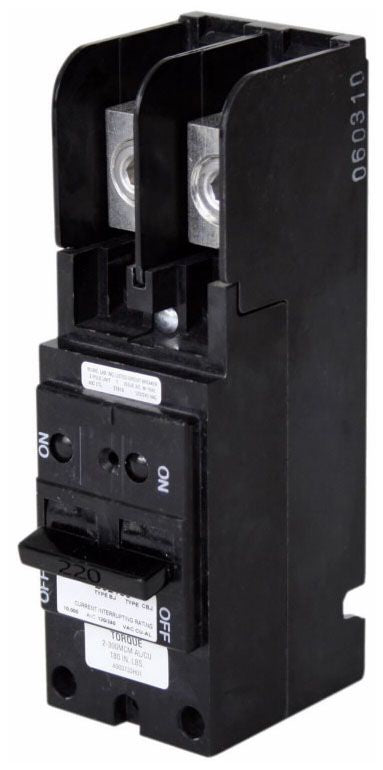

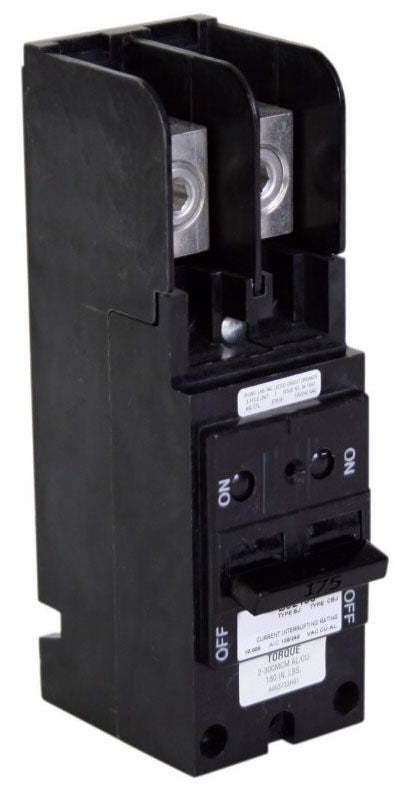

Eatonâ€s low and medium-voltage circuit breakers provide premium protection for overheating wires, overloads and short circuits in residential, commercial, industrial and hazardous area applications.

Specifications:

Type: Common Trip
Number of Poles: 2
Voltage Rating: 120/240 Volt AC
Current Rating: 200 Amp
Interrupting Rating: 10 Kiloamp
Wire Size: 2 AWG to 300 KCMIL (Copper/Aluminum)
Mounting: Plug-On
Used On: BR Series Load Center
Size: 6.5 Inch Length x 3.5 Inch Width x 2.5 Inch Height
Approval: UL 489
