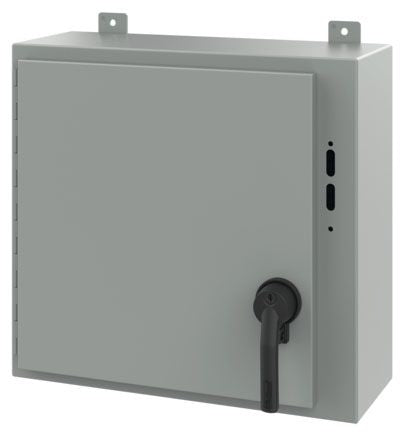

Hoffman Enclosures A36SA3210LPPL Wall Mount Disconnect Enclosure
Couldn't load pickup availability
These general purpose disconnect enclosures accept major brand disconnect switches and circuit breakers, available with or without the nVent HOFFMAN supplied defeater door handle and handle hardware. Each Disconnect Enclosure with Handle, Type 12 is furnished with latch pivot post(s) and cover interlock bracket welded to door, cover latch bar for door, and instructions for installing disconnects.
Specifications:
Type: 1-Door, Circuit Breaker/Disconnect Switch
Height: 36 Inch
Width: 31.38 Inch
Depth: 10 Inch
Material: Mild Steel
Material Specification: 14 Gauge
Color: White Inside/ANSI 61 Gray Outside (Body), ANSI 61 Gray (Door)
Finish: Painted
Cover Type: Continuous Hinged, Oil Resistant Gasketed
Back Panel: A36P30, A36P30G
Mounting: Wall, External Welded-On Bracket
Enclosure: NEMA 12/13, IP65
Approval: UL 508A, CUL, CSA C22.2
