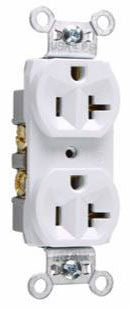

Corrosion-Resistant, Plated Steel Strap Locked into Face and Back Body to Resist Pulling Away from Face/Body Assembly; 0.032 Inch Thickness Brass Triple-Wipe Power Contacts for Lasting Retention; Easily Accessed Break-Off, Line-Contact Connecting Tab for Fast, Easy Split-Circuit Wiring; Impact-Resistant Nylon Face and Thermoplastic Back Body; Accepts #14 to #10 AWG Solid or Stranded Copper or Copper-Clad Wire; Terminal Compartments Isolated from Each Other for Positive Conductor Containment; Tri-Drive Terminal and Mounting Screws; Auto-Ground Clip Assures Positive Ground; RoHS Compliant

Specifications:

Type: Duplex
Constructional Feature: Corrosion Resistant
Configuration: 5-20R
Voltage Rating: 125 Volt AC
Current Rating: 20 Amp
Number of Poles: 2
Number of Wires: 3
Ground Type: Grounding
Material: Thermoplastic (Back Body), Impact Resistant Nylon (Face)
Color: White
Wiring: Side
Grade: Commercial, Specification
Approval: UL 498, CSA C22.2
