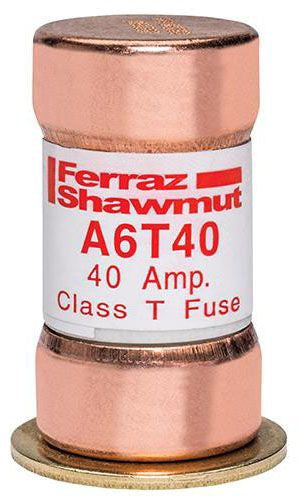

Fast-acting A6T Class T fuses combine two highly desirable features - high current limitation and a small physical size. Their unique dimensions prevent the substitution of other fuses with lower voltage ratings or current-limiting capability. These fuses have glass melamine bodies for superior dimensional stability and catalog numbers stamped into the blades for permanent identification.

Specifications:

Type: Class T
Characteristics: Fast Acting
Voltage Rating: 600 Volt AC, 300 Volt DC
Current Rating: 40 Amp
Interrupting Rating: 200 Kiloamp (AC), 100 Kiloamp (DC)
Terminal Type: Ferrule
Diameter: 0.81 Inch
Length: 1.57 Inch
Approval: UL 248/248-15, CSA C22.2
