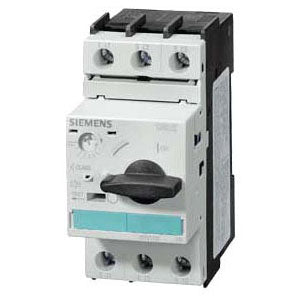

3RV1 Motor Starter Protectors/Circuit Breakers are Compact, Current Limiting Motor Starter Protectors/Circuit Breakers Which are Optimized for Load Feeders; The Motor Starter Protectors/Circuit Breakers are Used According to IEC for Switching and Protecting Three-Phase Motors of up to 45 Kilowatt at 400 Volt AC and for Other Loads with Rated Currents of up to 100 Amp; Manual Motor Controllers; Manual Motor Controllers for Group Installations; Manual Motor Controllers Suitable for Tab Conductor Protection in Group Installations

Specifications:

Type: Thermal Magnetic
Voltage Rating: 690 Volt AC
Current Rating: 1.25 Amp
Number of Poles: 3
Trip Setting: 0.9 to 1.25 Amp
Starter Size: S0
Terminal Type: Screw
Wire Type: (2) 1 to 2.5 Square Millimeter, (2) 2.5 to 6 Square Millimeter (Solid/Stranded)
Size: 45 Millimeter Width x 96 Millimeter Depth x 97 Millimeter Height
Approval: UL 508, CSA C22.2, CE, CCC, EAC
