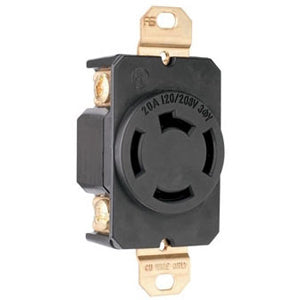

Pass & Seymour 7410 Locking Device Receptacle

  • Sale
  • Regular price $39.96
Shipping calculated at checkout.


Compact, Impact-Resistant Nylon Face and Body are Ultrasonically Welded Together for Unrivaled Strength; Face Color Coding by Voltage Facilitates Locating and Mating of Proper Devices; 1-Piece, High-Grade Brass Contacts Offer Excellent Conductivity and Heat-Rise Resistance; Clearly Marked NEMA Configuration, Rating and Third-Party Listing on Each Unit's Face; Single-Piece, Solid Brass Mounting Strap is Free of Easily Loosened Rivets Found on Other Brands; Side and External Screw-Pressure-Plate Back Wire Capability; Accepts #14 to #10 AWG

Specifications:

Type: Single
Constructional Feature: Impact Resistant
Configuration: Non-NEMA Locking
Voltage Rating: 120/208 Volt AC Star 3-Phase
Current Rating: 20 Amp
Number of Poles: 3
Number of Wires: 4
Face Outer Diameter: 1.545 Inch
Material: Nylon
Approval: UL 498, Federal Specification UL WC596


Documents:
