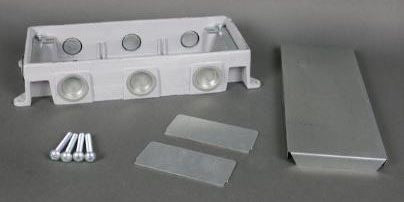

Wiremold 880CM3-1 Concrete Floor Box

  • Sale
  • Regular price $215.71
  • 1 available
Shipping calculated at checkout.


The 880Cm3 Omnibox Floor Box Series Provides an Excellent Activation Solution for Applications Where Single Service is Required in Open Space Areas; The 880Cm3 Floor Box is Offered in a Durable Cast Iron Construction, Designed to be Installed in On-Grade Concrete Floor Applications and to Meet a Wide Range of Market Requirements; All Cover Assemblies for the Omnibox Floor Box Series have Top Guard Protection; An Integral Design Which Keeps Out Water, Dirt and Debris from the Power and Communication Compartments; Before and after Concrete Pour Adjustability; Lower Installed Cost; Watertight Cast-Iron Construction Meets Requirements for On-Grade or Below Grade Application; Flush Activation Assemblies for Carpet and Tile; Datacom Connectivity Options Accepts Industry Standard and Propriet any Devices from a Wide Range of Manufacturers to Provide a Seamless and Aesthetically Pleasing Interface for Voice, Data, Audio and Video Applications at the Point of Use; A Wide Selection of Data and Bezel Options Available for Use with Ortronics Tracjack and Series Ii Devices; RoHS Compliant; Made in USA

Specifications:

Type: Fully Adjustable
Shape: Rectangular
Length: 12-1/2 Inch
Width: 5-3/16 Inch
Depth: 2-7/16 Inch
Adjustment Size: 1-3/4 Inch Pre-Pour, 1/2 Inch Post-Pour
Material: Cast Iron
Number of Knockouts: 8
Knockout Size: (2) 1 Inch Conduit Threaded Side, (6) 1 Inch Conduit Threaded End
Number of Gangs: 3
Service Type: Multi, Shallow
Capacity: 118 Cu Inch
Installation: Concrete Floor
Device Type: Audio/Video, Communication, Power
Cover Type: 828, 829, 830, 837, 838 Series
Cover Mounting: Tile, Carpet
Approval: UL 514A/514C/514D, CSA C22.2
