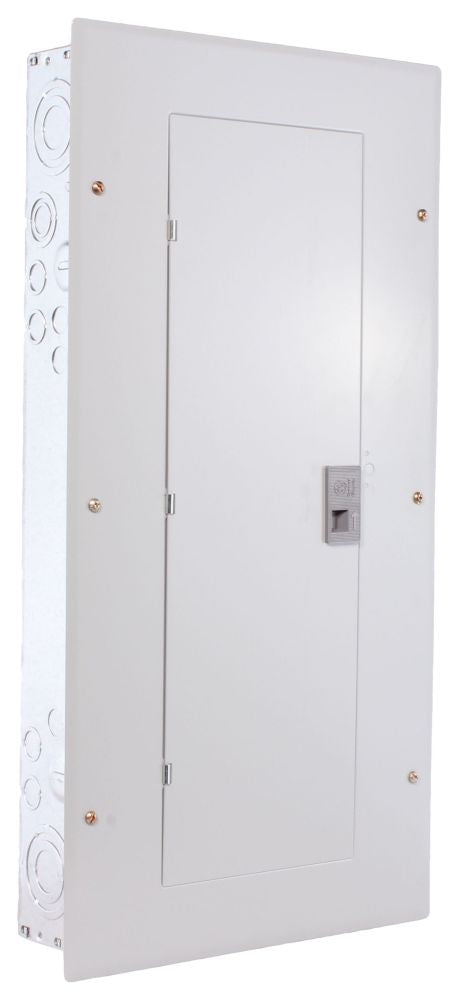

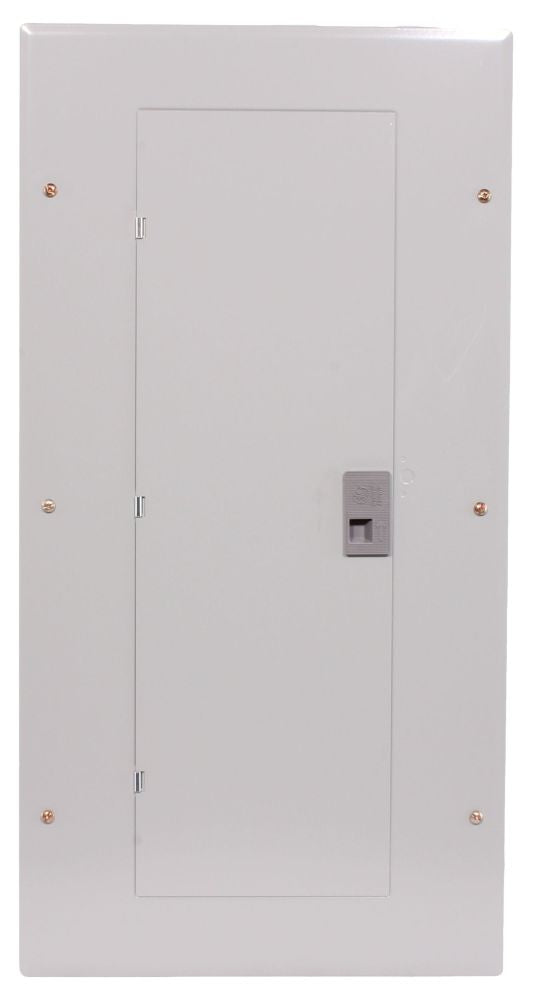

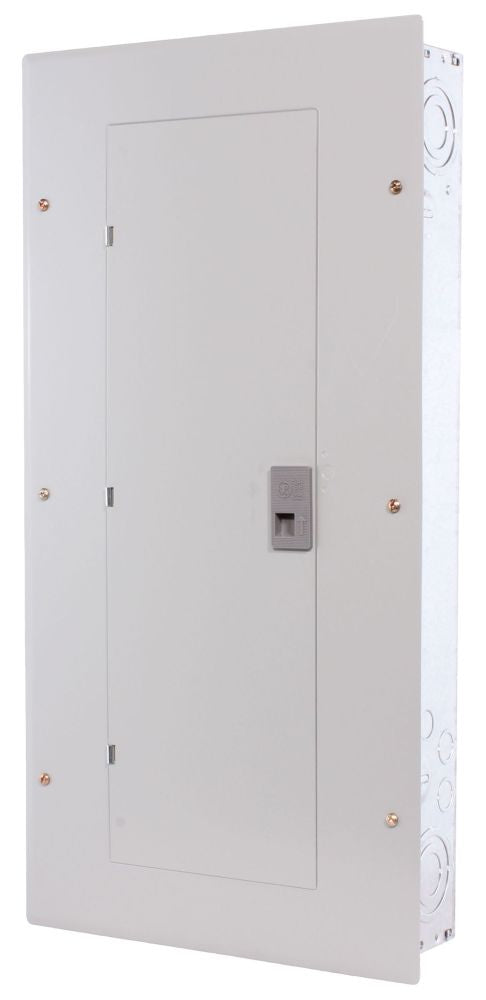

PowerMark Gold load centers lower your costs by making installation faster and easier, increasing application flexibility and reducing inventory requirements. At the same time, they deliver obvious and significant advances in design, function and quality.

Specifications:

Type: Convertible Main
Voltage Rating: 120/240 VAC
Current Rating: 200 Ampere
Circuit Configuration: 1-Phase 3-Wire
Maximum Number of Circuits: 42
Maximum Number of Spaces: (24) 1-Pole 1 Inch/(12) 2-Pole 1 Inch/(36) 1-Pole 1/2 Inch/(18) 2-Pole 1/2 Inch
Main Breaker Type: THQL/THQP
Breaker Mounting: Plug-In
Interrupting Rating: 22 Kiloampere
Neutral Type: Split
Bus Material: Copper
Feed Location: Top/Bottom
Main Wire Size: 1 to 3/0 AWG (Copper), 2 to 3/0 AWG (Aluminum)

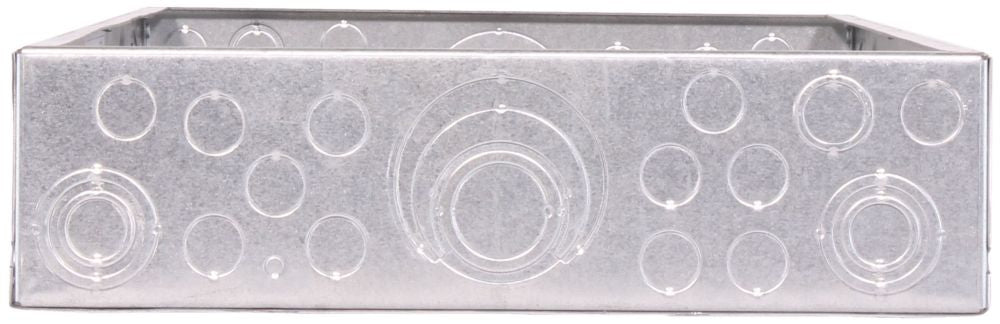

Enclosure Type: NEMA 1, Indoor

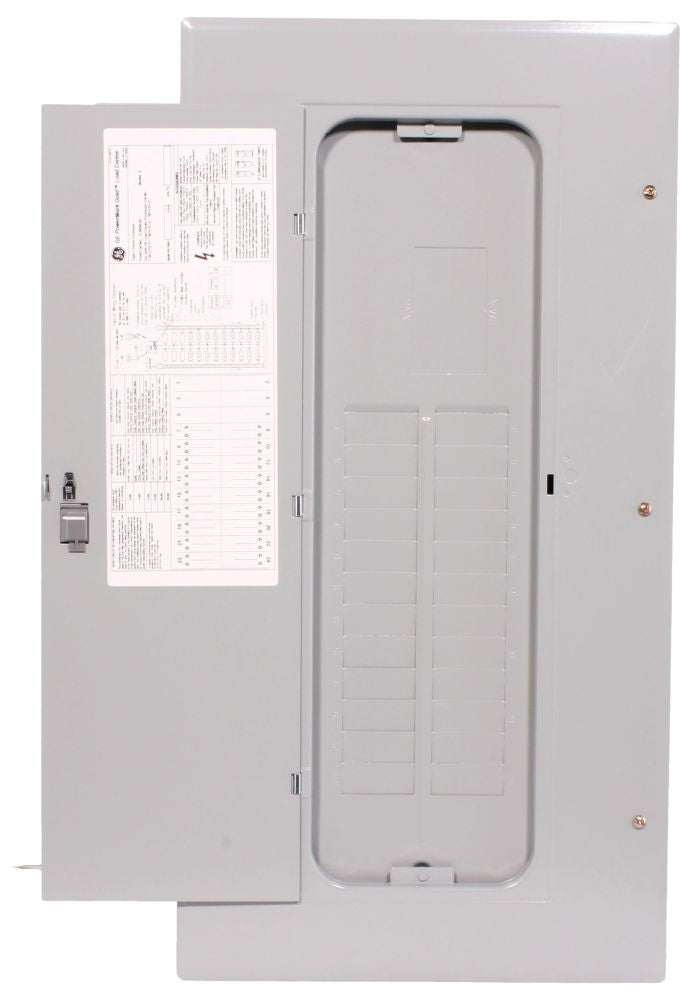

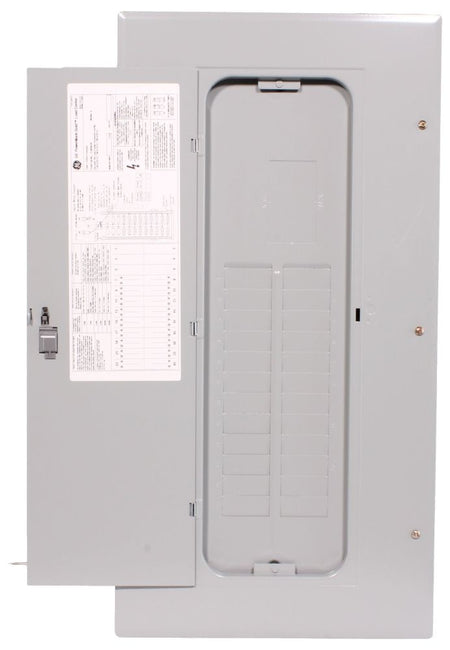

Cover Type: Flush/Surface
Enclosure Size Designation: 9
Size: 14 Inch W x 3-3/4 Inch D x 28-7/16 Inch H
Approval: UL
