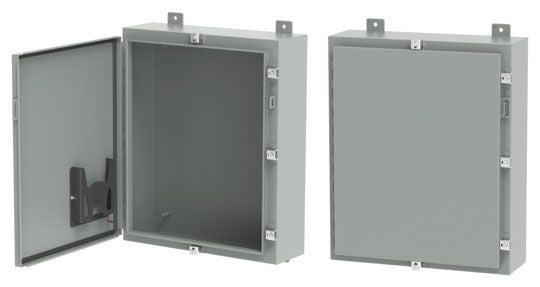

Hoffman Enclosures A16H16ALP Wall Mount Enclosure
Couldn't load pickup availability
These single-door enclosures feature a hinged door with clamps on three sides to create a secure seal in indoor or outdoor environments. The gray polyester powder finish inside and out provides enhanced corrosion protection in outdoor applications.
Specifications:
Type: 1-Door
Height: 16 Inch
Width: 16 Inch
Depth: 6 Inch
Material: Mild Steel
Material Specification: 16 Gauge
Color: ANSI 61 Gray
Finish: Polyester Powder Painted
Cover Type: Continuous Hinged, (4) Stainless Steel Screw-Down Door Clamp, Heavy Gauge Continuous Hinge Pin, Seamless Foam-In-Place Gasketed, Padlockable Hasp and Staple
Back Panel: A16P16, A16P16G
Enclosure: NEMA 3/4/12/13, IP66
Mounting: Wall, External Welded-On Bracket
Service Type: Indoor/Outdoor
Approval: UL 508A, CUL, CSA C22.2
