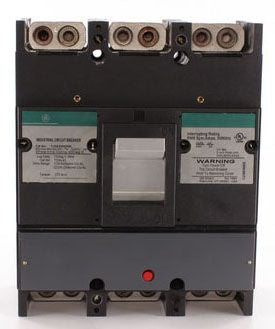

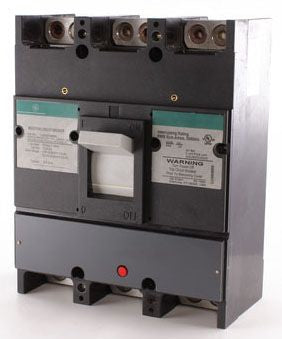

The TJD Line of Devices Include Thermal Magnetic Molded Case Circuit Breakers and Molded Case Switches; The Devices are Complete with Cu/Al Line and Load Lugs

Specifications:

Type: Molded Case, Thermal Magnetic, Internal Common Trip
Frame Type: TJD
Voltage Rating: 240 V
Maximum AC Voltage Rating: 240 V
Current Rating: 400 Ampere
Number of Poles: 3
Interrupting Rating: 22 Kiloampere

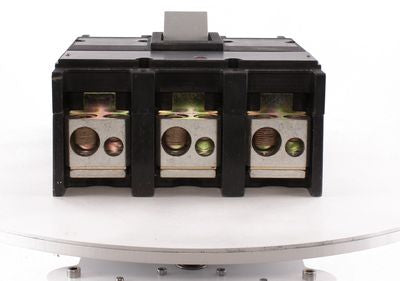

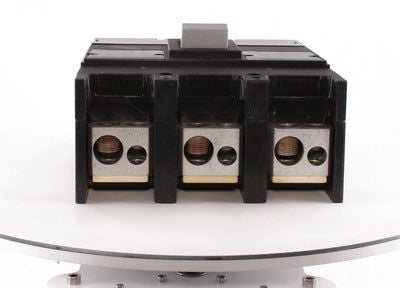

Terminal Type: Copper/Aluminum Line and Load Lug
Size: 8-1/4 Inch W x 3-13/16 Inch D x 10-1/8 Inch H
Approval: UL
