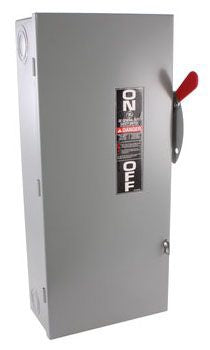

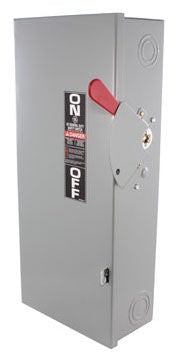

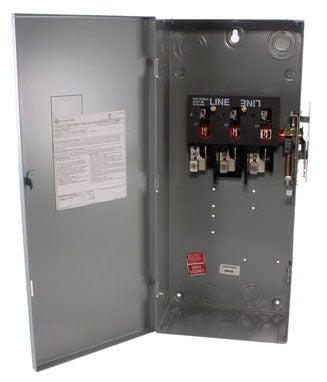

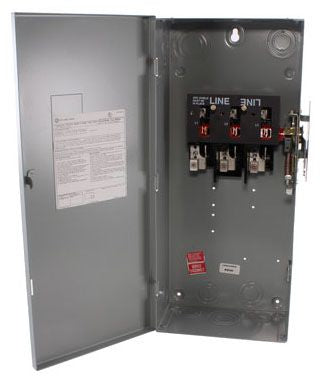

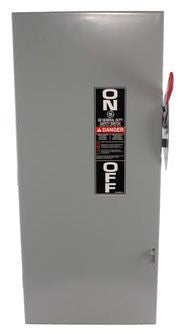

Designed for Residential and Light Commercial Applications Where Duty is Not Severe; Listed to UL Standard 98 Enclosed and Dead Front Switches; Suitable for Use as Service Equipment When Installed in Accordance with the National Electrical Code; Certified to CSA Standard 22.2 No. 4-04 Enclosed and Dead Front Switches; Meets or Exceeds NEMA KS1 Standard for Enclosed Switches, Type Gd; 60/75 C Conductor Rating; Direct-Drive, Quick-Make, Quick-Break Mechanism "Snaps" Contacts Open and Closed Providing Positive On/Off Indication; Self-Leveling, Three-Point Mounting System; Integral Cover Interlock; Visible Confirmation of Plated Blade Contact Positions; Spring Reinforced Fuse Clips Assure Reliable Contact for Cool Operation; Seismic Certified; GSA Compliant

Specifications:

Type: General Duty
AC Voltage Rating: 240 Volt
DC Voltage Rating: 250 Volt
Current Rating: 100 Amp
Power Rating: 15 HP at 240 Volt AC 1-Phase, 30 HP at 240 Volt AC 3-Phase (NEC Standard), 20 HP at 250 Volt DC
Number of Poles: 3
Number of Wires: 3
Fuse Provision: Non-Fusible
Neutral Type: Switching
Enclosure: NEMA 1
Size: 9.39 Inch Width x 4.9 Inch Depth x 21.33 Inch Height
Approval: UL 98, CSA
