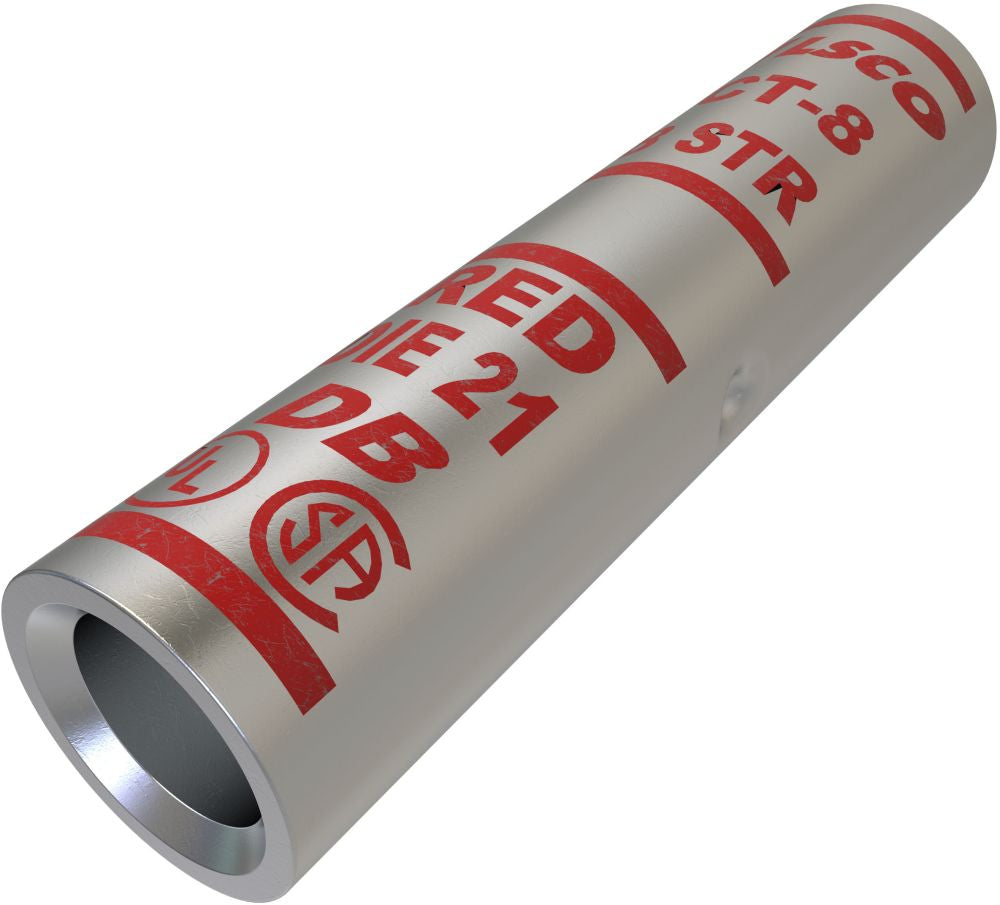

Ilsco CT-8 Compression Cable Sleeve
Regular price
$0.02
Couldn't load pickup availability
Manufactured from High Strength Seamless Copper Tubing Offers Maximum Conductivity and Excellent Crimping Characteristics; Electro Tin Plated Provides Low Contact Resistance; Chamfered Entry for Easy Conductor Insertion; Color Coded Identifies the Proper Compression Die; Application Versatility; Reduces Inventory Requirements; RoHS Compliant
Specifications:
Type: Center Wire Stop
Voltage Rating: 35 Kilovolt
Conductor Size: 8 AWG
Conductor Material: Copper
Color Code: Red
Barrel Type: Short with Chamfered End
Length: 1.125 Inch
Inner Diameter: 0.179 Inch
Outer Diameter: 0.272 Inch
Body Material: Electro Tin Plated Seamless Copper
Approval: UL 453G/467/486A/B, CSA
