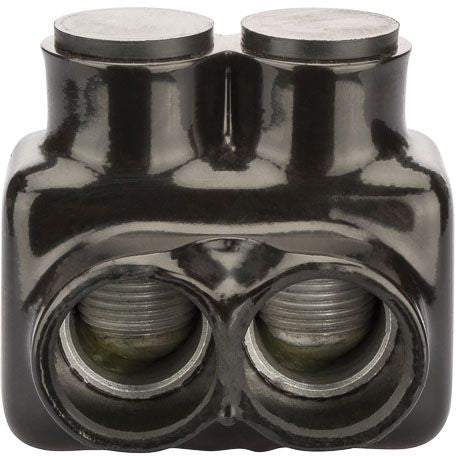

Insulated Tap Connectors, Suitable for Connecting Two Wires; For sizes 3/0 AWG and Smaller, Wires Being Connected from the Same Side of the Connector or Opposite Sides of the Connector; For Sizes 250 MCM and Larger, Provided with Open Wire Entry Ports on Both Sides of the Connector Which Allows for Access from Either Side; This Style is Supplied with Removable Access Plugs to Close the Entry Port not Being Utilized; Abrasion, Chemical and UV Resistant; Will Not Support Combustion

Specifications:

Voltage Rating: 600 V
Number of Ports: 2
Cable Entry: 2 Side Entry
Conductor Material: Copper/Aluminum
Minimum Conductor Size: 6 AWG Stranded
Maximum Conductor Size: 600 KCMIL Stranded
Body Material: Plastisol
Approval: UL (Canada and US)
