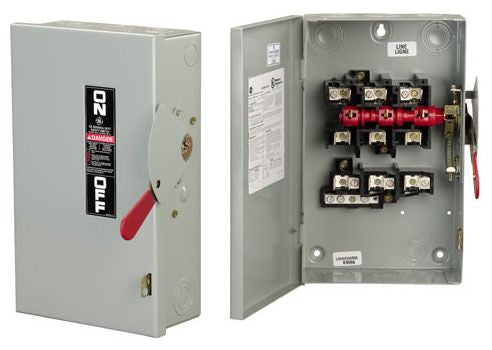

Designed for Residential and Light Commercial Applications Where Duty is Not Severe; Listed to UL Standard 98 Enclosed and Dead Front Switches; Suitable for Use as Service Equipment When Installed in Accordance with the National Electrical Code; Certified to CSA Standard 22 2 No 4-04 Enclosed and Dead Front Switches; Meets or Exceeds NEMA KS1 Standard for Enclosed Switches, Type GD; Quick-Make, Quick-Break Mechanism; 60/75 Deg C Conductor Rating

Specifications:

Type: General Duty
AC Voltage Rating: 240 Volt
Current Rating: 400 Amp
Power Rating: 50 HP at 240 Volt AC 3-Phase (NEC Standard), 100 HP at 240 Volt AC 3-Phase (Time Delay)
Number of Poles: 3
Number of Wires: 4
Fuse Provision: Fusible
Fuse Type: Cartridge, Class H/K/R
Neutral Type: No
Enclosure: NEMA 1
Size: 21.63 Inch Width x 8.7 Inch Depth x 49.44 Inch Height
Approval: UL 98, CSA
