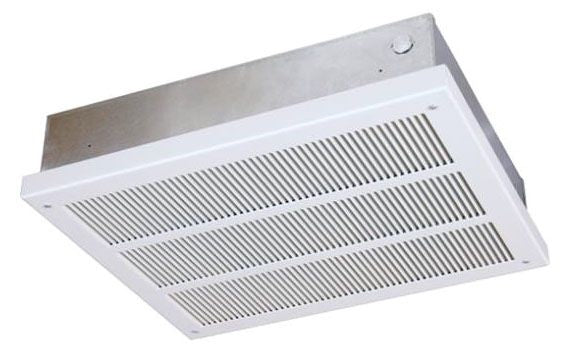

QMark EFF4004 Fan Forced Heater
Couldn't load pickup availability
Accommodates pneumatic/electric or low voltage controls commonly used with BMS Systems; Built in power on/off switch; When using wall thermostat, separate thermostat wiring is required; Automatic fan delay eliminates cold drafts on start-up and discharges residual heat from the heater body during shut down; Multiple mounting options: recessed, surface or T-Bar; Heavy duty 14-gauge louvered front cover grille with tamper-resistant screws
Specifications:
Type: Heavy Duty
Voltage Rating: 240 Volt AC
Current Rating: 16.7/14.4 Amp
Power Rating: 4000/2000 Watt
Number of Phases: 1
Heating Capacity: 13652/10239 BTU/Hour
Housing Size: 19-1/8 Inch Length x 15-3/4 Inch Width x 1 Inch Depth
Color: Navajo White
Control Type: Thermostat
Air Flow Rate: 150 CFM
Mounting: Ceiling
Approval: UL (Canada and US), ETL (Canada and US)
