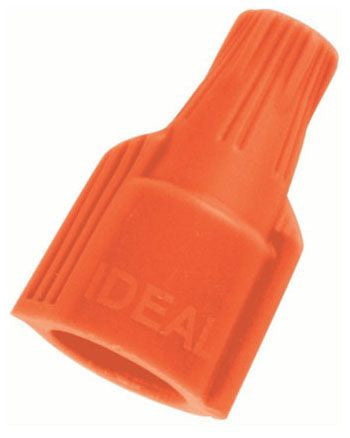

IDEAL Electrical 30-340 Wire Connector

Twister Wire Connectors have Earned a Solid Reputation as the Most Technically Advanced Wire Connector Available. These Superior Wire Connectors are Designed from Top to Bottom with Features to Provide More Comfort and Less Fatigue to Professional Electricians. with Swept Wings and an Expanding, Live-Action Spring, The Twister Supports a Wide Range of Common Wiring Configurations with Comfort and Ease, Even on the Toughest Combinations Like Solid-To-Stranded. The Copolymer Shell Expands for Smooth, Progressive Tightening Ensuring Dependable Connections.

Specifications:

Type: Swept Wing, Ribbed Cap, Hex Head
Voltage Rating: 600 Volt, 1000 Volt (Fixture/Sign)
Wire Type: Copper
Wire Size: 22 to 10 AWG
Minimum Wire Combination Size: (2) #22
Maximum Wire Combination Size: (3) #12
Spring Type: Expanding, Live Action
Shell Material: Polypropylene
Color: Orange
Temperature Rating: 105 Deg C
Standard Package: 100 per Box
Approval: UL 486C, CSA C22.2, CE
