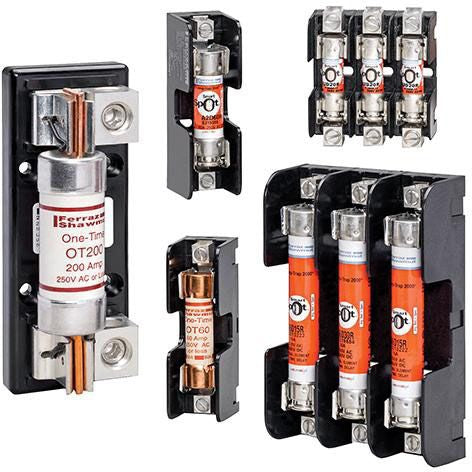

Mersen EP 20307R Fuse Block

Out of stock
SKU: 55298
Regular price $20.20
OR

Class H, K Fuse Blocks Accommodate All Class H, K and 250 and 600 Volt Power Fuses; A Choice of Screw, Pressure Plate, Box and Special Order Stud Connectors Fit a Wide Range of Stranded or Solid Copper or Aluminum Conductors; Insulators are Either Molded Glass Filled Polycarbonate (Gap) or Phenol with Verified Dielectric Strength in Excess of 2500 Volt; 30, 60 and 100 Amp Fuse Blocks Feature a Unique Adder Block Which Can be Snapped Onto 1, 2 or 3-Pole Blocks to Form Multi-Pole Segmented Blocks of as Many Poles as Desired; All Fuse Clips are Made of High Conductivity Tin Plated Copper with a Choice of Spring-Reinforced or Non-Spring Reinforced Clip in 30 and 60 Amp; Clips 100 Amp and above are Spring Reinforced; RoHS/REACH Compliant

Specifications:

Type: Barrier
Material: Molded Glass Filled Polycarbonate
Number of Poles: 2
Fuse Type: Class R
Fuse Voltage Rating: 250 Volt AC/DC
Fuse Current Rating: 30 Amp
Wire Size: 14 to 2 AWG (Copper/Aluminum)
Terminal Type: Box Lug
Clip Type: Spring Reinforced
Approval: UL 4248-12, CSA C22.2, CE
