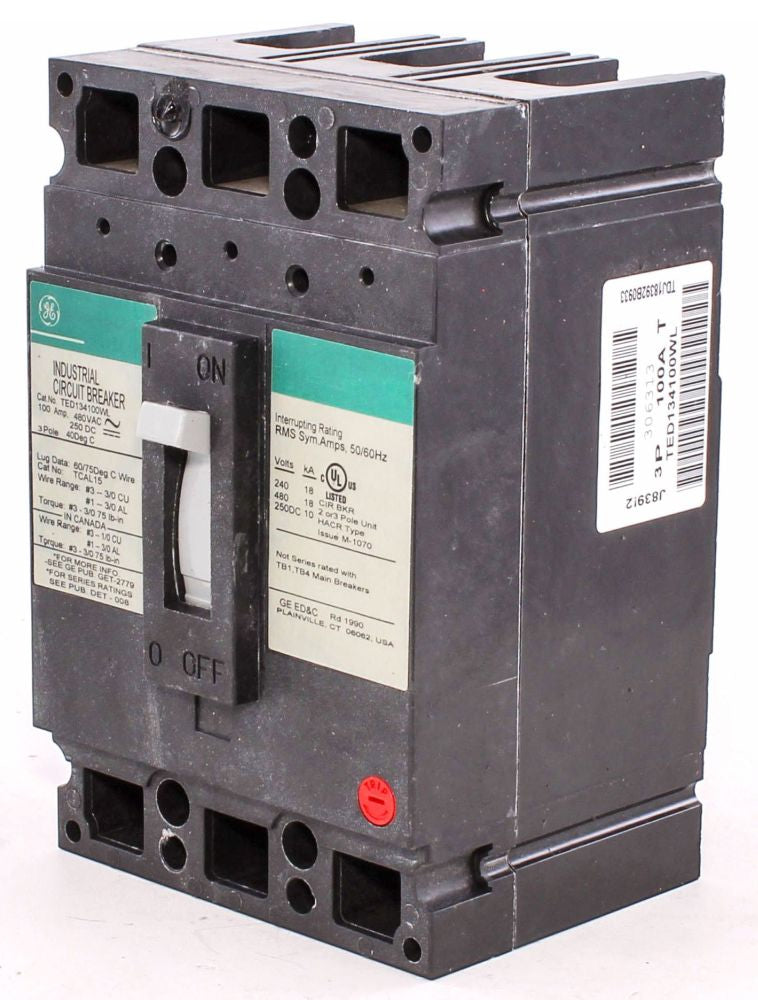

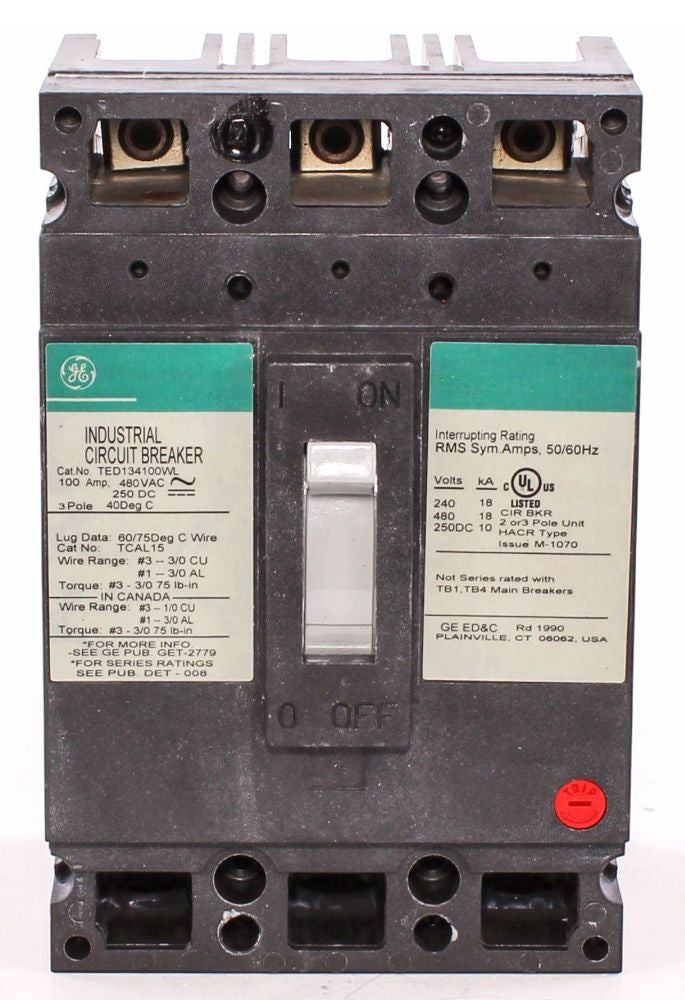

The E150 Product Line Consists of Thermal Magnetic Circuit Breakers, Magnetic Circuit Breakers and Molded-Case Switches Rated up to 150 Amps and 600 Volts AC; Catalog Numbers Include the Complete Breaker or Switch; The WL Catalog Number Suffix Indicates that the Devices Come with Cu/Al Line and Load Lugs; All TED Breakers Suitable for Reverse Feed

Specifications:

Type: Molded Case, Thermal Magnetic
Frame Type: TED
Voltage Rating: 480 Volt
Maximum AC Voltage Rating: 600 Volt
Maximum DC Voltage Rating: 500 Volt
Current Rating: 100 Amp
Number of Poles: 3
Interrupting Rating: 18 Kiloamp at 240/480 Volt AC, 14 Kiloamp at 600 Volt AC, 10 Kiloamp at 500 Volt DC

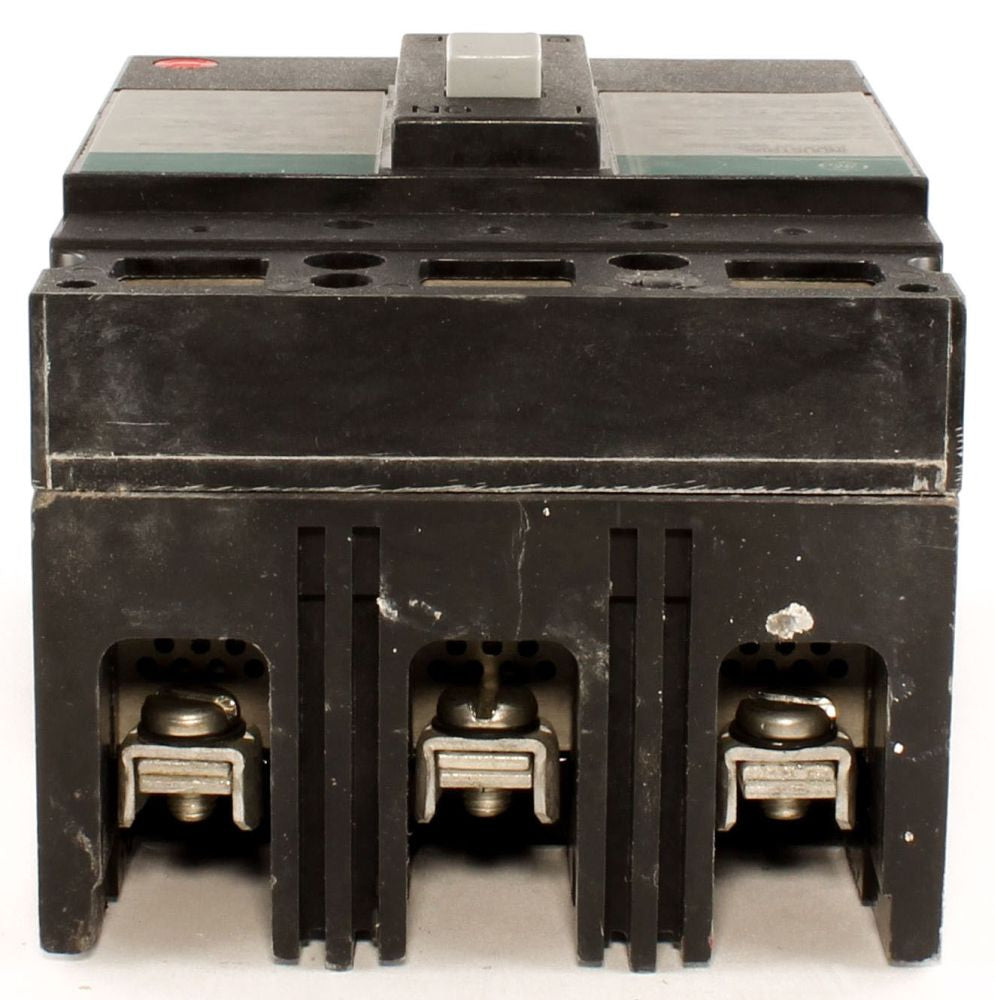

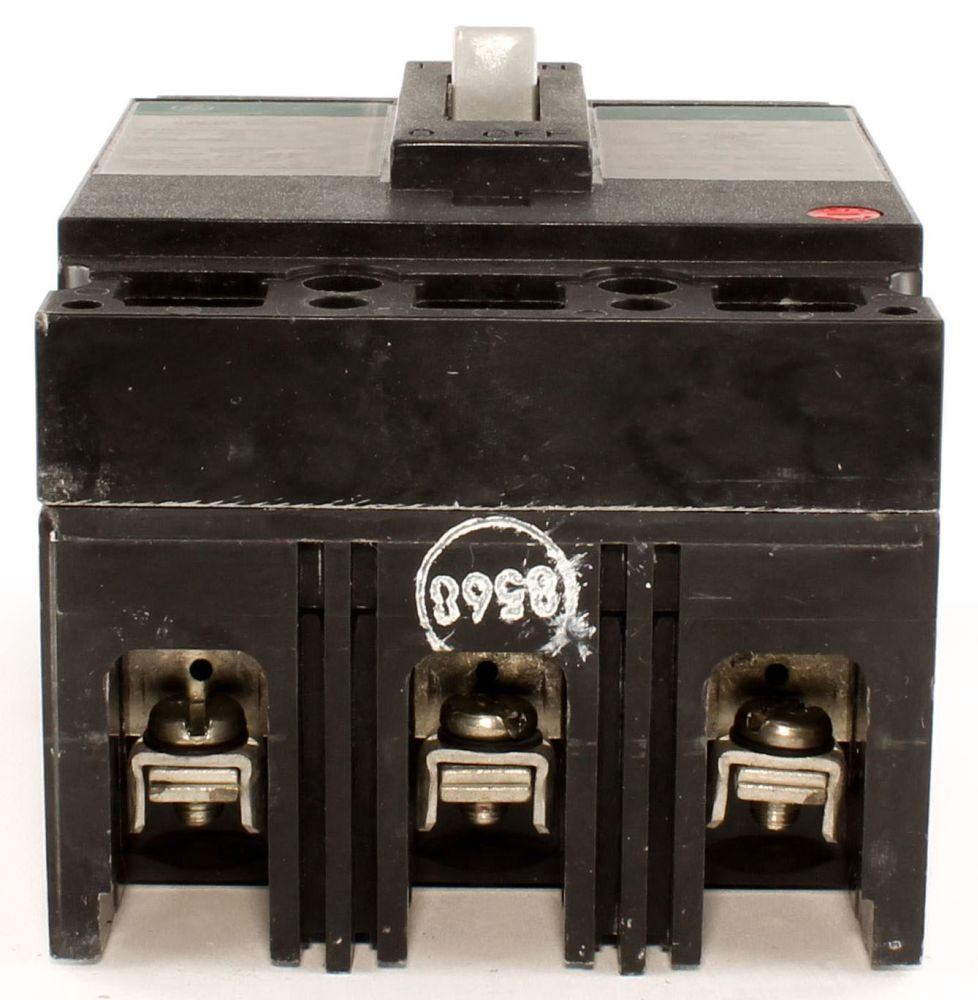

Terminal Type: Copper/Aluminum Line and Load Lug
Size: 4-1/8 Inch Width x 3-3/8 Inch Depth x 6-5/16 Inch Height
Approval: UL, CSA
