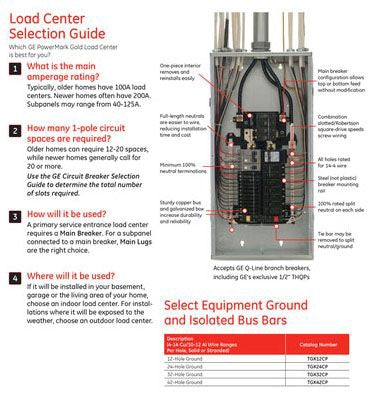

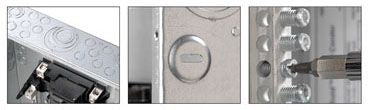

1-Piece Interior Removes and Reinstalls Easily; Full-Length Neutrals are Easier to Wire Reducing Installation Time and Cost; Minimum 100% Neutral Terminations; Sturdy Copper Bus and Galvanized Box Increase Durability and Reliability; Main Breaker Configuration Allows Top or Bottom Feed without Modification; Combination Slotted/Robertson Square-Drive Speeds Screw Wiring; 100% Rated Split Neutral on Each Side; Tie Bar May be Removed to Split Neutral/Ground

Specifications:

Type: Main Lug
Voltage Rating: 208 Star/120 Volt AC
Current Rating: 200 Amp
Circuit Configuration: 3-Phase 4-Wire
Maximum Number of Circuits: 30
Maximum Number of Spaces: (30) 1-Pole 1 Inch, (14) 2-Pole 1 Inch, (10) 3-Pole 1 Inch
Main Breaker Type: THQL, THHQL
Breaker Mounting: Plug-On
Interrupting Rating: 22 Kiloamp
Bus Material: Aluminum
Feed Location: Top/Bottom
Main Wire Size: 1 AWG to 250 KCMIL (Copper), 2/0 AWG to 250 KCMIL (Aluminum)
Enclosure Type: NEMA 1, Indoor
Cover Type: Flush/Surface
Enclosure Size Designation: 11
Size: 14 Inch Width x 3-3/4 Inch Depth x 33-3/16 Inch Height
Approval: UL
