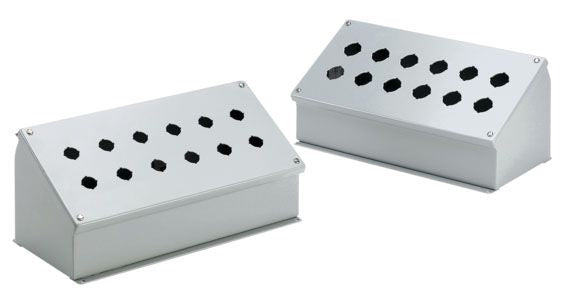

Hoffman Enclosures E8PBA Pushbutton Enclosure
Regular price
$338.51
Couldn't load pickup availability
Seams Continuously Welded and Ground Smooth; Captivated Cover Screws Thread into Sealed Wells; Bonding Provision on Cover; Grounding Stud on Body; Oil Resistant Gasket; Factory Stamped 4-Way Pushbutton Hole; RoHS/REACH Compliant
Specifications:
Type: Sloped Front
Height: 7.25 Inch
Width: 10.75 Inch
Depth: 6.75 Inch
Number of Device Holes: 8
Device Hole Location: 2-Row Horizontal
Device Hole Size: 30.5 Millimeter Diameter
Material: Steel
Material Specification: 14 Gauge
Color: ANSI 61 Gray
Finish: Polyester Powder Coated
Enclosure: NEMA 12/13, IP65
Mounting: External Bracket
Approval: UL 508A, CUL, CSA C22.2
