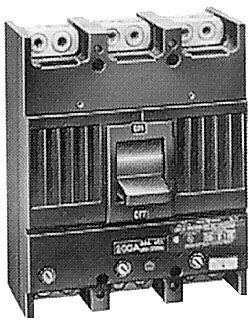

The J600 Product Line Consists of Thermal Magnetic Circuit Breakers Magnetic Circuit Breakers and Molded-Case Switches Rated up to 600 Amps and 600 VAC; Frame (125 to 400 Amperes) and 600 Ampere Frame (250 to 600 Amperes); Trip Units are Not Interchangeable Between Frames

Specifications:

Type: Thermal Magnetic, Interchangeable Trip
Voltage Rating: 120/240/277/480/600 VAC, 125/250/500/600 VDC
Maximum AC Voltage Rating: 600 V
Maximum DC Voltage Rating: 500 V
Current Rating: 400 Ampere
Number of Poles: 3
Interrupting Rating: 65 Kiloampere at 120/(120/240)/240 VAC, 35 Kiloampere at 277/480 VAC, 25 Kiloampere at 600 VAC
Terminal Type: Copper/Aluminum Line and Load Lug
Size: 8-1/4 Inch W x 3-13/16 Inch D x 10-1/8 Inch H
Approval: UL, CSA
