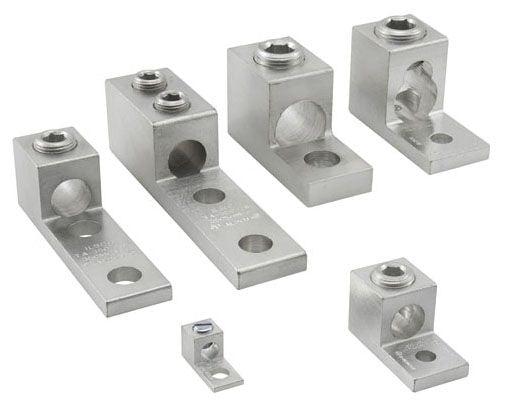

Ilsco TA-800 Mechanical Lug
Couldn't load pickup availability
Dual Rated; Manufactured from High Strength 6061-T6 Aluminum Alloy; Electro-Tin Plated; Chamfered Wire Entry; Suitable for Use in Circuits Rated 35Kv or Less, Proper High Voltage Spacing and Insulation Techniques Must be Used; Rated to 90 Deg C; Suitable for Use with Either Copper or Aluminum Conductors; Provides Low Contact Resistance; Provides Ease of Installation; Versatility; RoHS Compliant
Specifications:
Type: Chamfered Wire Entry
Number of Conductors: 1
Minimum Conductor Size: 300 KCMIL
Maximum Conductor Size: 800 KCMIL
Conductor Material: Aluminum/Copper
Pad Type: Straight
Screw Type: 1/2 Inch Hex
Material: Electro-Tin Plated High Strength 6061-T6 Aluminum Alloy
Number of Pad Holes: 1
Pad Size: 1-3/4 Inch L x 1-3/4 Inch W x 1/2 Inch Thk
Stud Size: 5/8 Inch
Overall Length: 3-3/8 Inch
Approval: UL 453G, UL 486A/B, CSA
