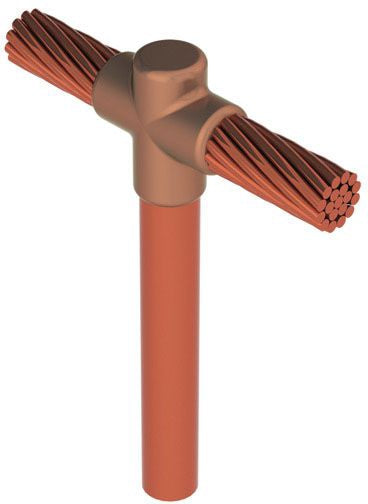

Erico GTC182Q Through Cable to Top of Ground Rod Mold
Regular price
$141.56
Couldn't load pickup availability
Forms a Permanent, Low Resistance Connection; Provides a Molecular Bond; Erico Cadweld Exothermic Connections are Rated with the Same Current Capacity as the Conductor; Portable Installation Equipment with No External Source of Power Required; Installer can be Easily Trained to Make Erico Cadweld Exothermic Connection; Connection can be Visually Inspected
Specifications:
Mold Material: Graphite
Rod Type: Threaded/Plain
Rod Material: Copper Clad
Rod Size: 3/4 Inch
Conductor Size: 4/0 AWG Concentric
Handle Clamp Type: L160
Weld Metal Type: 115 or 115PLUSF20
Used On: GT Series Cable to Ground Rod
Approval: UL (Canada and US)
