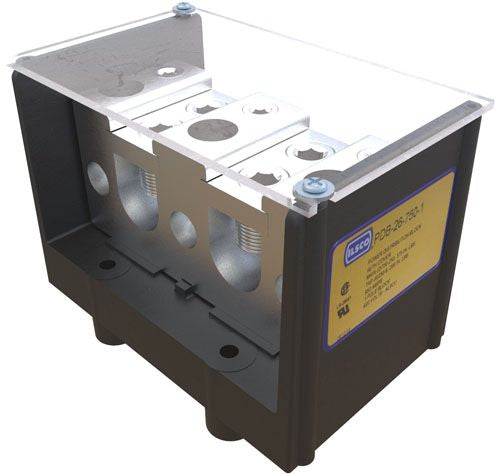

Ilsco PDB-26-750-1 Power Distribution Block

Lay-In Primary Cable Ports; Valox Insulating Base; Designed for Feed Through of Two Primary Conductors and up to Six Taps with No Need to Break the Main Feeder Cable; Provides a High Degree of Impact Resistance with Superior Insulating Qualities; Permits Visual Inspection; Ensures Reliability; Provides Low Contact Resistance; Suitable for Use with Either Copper or Aluminum Conductors; RoHS Compliant

Specifications:

Type: Lay-In
Voltage Rating: 600 V
Current Rating: 950 Ampere
Number of Poles: 1
Number of Primary Openings per Pole: 2
Primary Opening Wire Size: 250 to 750 KCMIL
Number of Secondary Openings per Pole: 6
Secondary Opening Wire Size: 6 AWG to 250 KCMIL
Conductor Material: Aluminum/Copper
Cover Type: Clear
Size: 6-7/32 Inch L x 4 Inch W x 4-3/8 Inch H
Temperature Rating: 90 Deg C
Connector Material: Electro-Tin Plated High Strength 6061-T6 Aluminum Alloy
Approval: UL 1059, CSA
