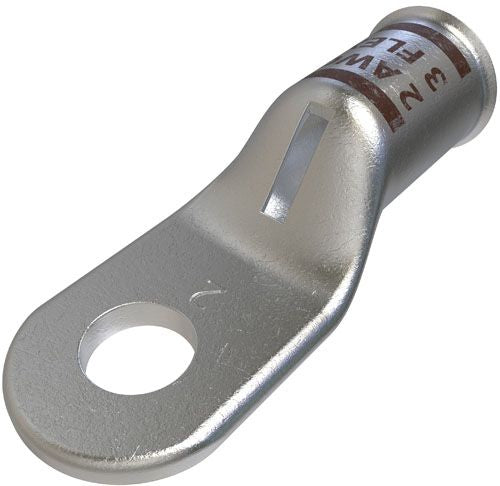

Ilsco CCL-2-14 Compression Cable Lug
Regular price
$2.09
Couldn't load pickup availability
Electro Tin Plated Provides Low Contact Resistance; Sight Hole Visual Inspection of Proper Liable Insertion; Solid Seamless Tang for Performance and Strength; Electrolytic Copper for High Conductivity; Application Versatility; RoHS Compliant
Specifications:
Voltage Rating: 35 Kilovolt
Conductor Material: Copper
Conductor Size: 2 AWG, 3 AWG (Flex)
Barrel Length: 0.525 Inch
Pad Size: 0.728 Inch Length x 0.598 Inch Width x 0.094 Inch Thickness
Number of Pad Holes: 1
Stud Size: 1/4 Inch
Color: Brown
Material: Electro-Tin Plated Electrolytic Copper
Overall Length: 1.606 Inch
Approval: UL 453G, CSA
