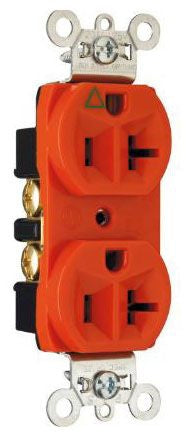

Pass & Seymour IG5362 Straight Blade Receptacle

In stock - 26 items available
SKU: 61872
Regular price $9.18
OR

IG Symbol and Isolated Ground Markings for Easy Identification and Circuit Delineation; Triple-Wipe Brass Contacts Ensure Lasting, Positive Contact with Plug Blades; High Impact-Resistant Nylon Face Resists Impacts and Scrapes; Corrosion-Resistant Plated Steel Strap; Patented Feature, External Screw Pressure Plate Back Wire Clamp on Ground Terminal for Faster, Easier Installation; Plastic Barrier Isolates Grounding Terminal from Mounting Strap and Metal Boxes; Side and Internal Screw Pressure Plate Back Wire Capability with 14 to 10 AWG Copper or Copper Clad, Solid or Stranded Wire; Auto-Ground Clip Assures Positive Ground

Specifications:

Type: Duplex, Heavy Duty
Constructional Feature: Corrosion Resistant
Configuration: 5-20R
Voltage Rating: 125 Volt AC
Current Rating: 20 Amp
Number of Poles: 2
Number of Wires: 3
Ground Type: Isolated Grounding
Material: PVC (Back Body), Impact Resistant Nylon (Face)
Color: Orange
Wiring: Back, Side
Grade: Specification
Approval: UL 498, CSA C22.2
