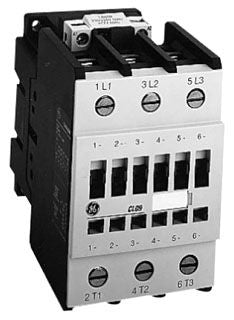

ABB GE Industrial CL01A310TU Contactor

Terminal Numbering in Accordance with EN 50005 and EN 50012; Fixing by Clipping Onto 35 MM DIN Rail EN 50022-35 or by Screws; Screws Protected Against Accidental Contact in Accordance with VDE 0106 T.100, VBG4; Ring Terminal Version; Three Coil Terminals; Mounting Possibilities of Front/Side Instantaneous Auxiliary Contact Blocks, Timed Auxiliary Contact Blocks, Mechanical Latch, Transient Suppressor Block and Interface Modules

Specifications:

Number of Poles: 3
Power Rating/Voltage: 4 HP at 220/230 Volt, 7.5 HP at 380/400/415/440 Volt, 10 HP at 500 Volt
Inductive Ampere: 12 Amp (AC-3)
Resistive Ampere: 25 Amp (AC-1)
Coil Voltage: 380 to 400 Volt AC 50 Hertz, 480 Volt AC 60 Hertz
Auxiliary Contact: 1NO
Construction Standard: IEC
Approval: UL 508, UL (Canada and US), CSA C22.2/14, CE
