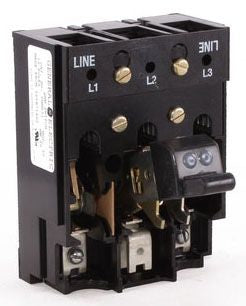

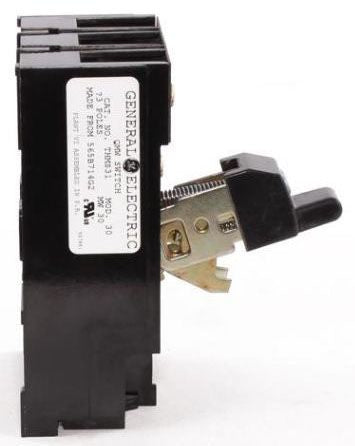

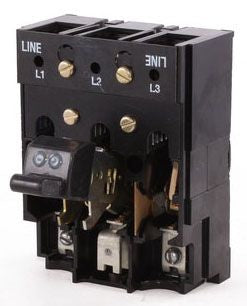

The 30-200 Ampere Fusible Switches are UL Recognized for Use on Circuits Capable of Delivering Not More than 200,000 RMS Symmetrical Amperes at 240 or 600 VAC When Fused with Class R Rated Size Fuses; They are Suitable for Use with Type STDA Flange Handles and Variable Depth Operating Mechanisms; Specify Special Screw Kit if Load Risers are to be Fastened from Underside of Base; Two Screws Required per Switch; 10 Screws in Each Product Number THMC1 Kit

Specifications:

Type: Fusible
Voltage Rating: 600 VAC 3-Phase/250 VDC
Current Rating: 30 Ampere
Fuse Type: Class R
Operator Included: Yes
Terminal Type: Lug
Conductor Material: Copper
Conductor Size: 14 to 8 AWG
Approval: UL
