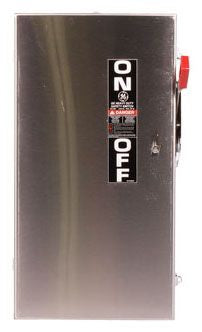

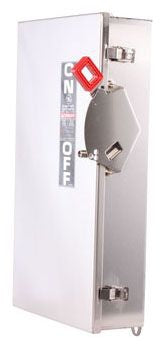

Designed for Commercial and Industrial Applications Where Safety, High Performance and Continuity of Service are Essential; Listed to UL Standard 98 Enclosed and Dead Front Switches; Suitable for Use as Service Equipment When Installed in Accordance with the National Electrical Code; Certified to CSA Standard 22 2 No 4-04 Enclosed and Dead Front Switches; Meets or Exceeds NEMA KS1 Standard for Enclosed Switches, Type HD; Quick-Make, Quick-Break Mechanism; 60/75 Deg C Conductor Rating; Full Cover Interlocks

Specifications:

Type: Heavy Duty
AC Voltage Rating: 240 V
DC Voltage Rating: 250 V
Current Rating: 100 Ampere
Power Rating: 7 HP at 240 VAC 1-Phase, 15 HP at 240 VAC 3-Phase (NEC Standard), 15 HP at 240 VAC 1-Phase, 30 HP at 240 VAC 3-Phase (Time Delay), 20 HP at 250 VDC
Number of Poles: 3
Number of Wires: 4
Fuse Provision: Fusible
Fuse Type: Cartridge, Class H/J/R
Neutral Type: No
Enclosure: NEMA 4/4X
Size: 13.41 Inch W x 5.04 Inch D x 25.35 Inch H
Enclosure Material: 304 Stainless Steel
Approval: UL 98, CSA
