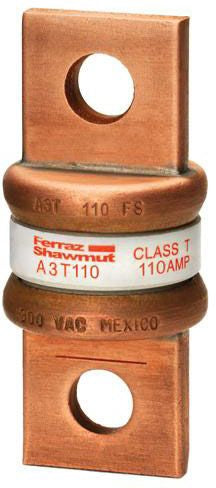

Fast-acting A3T Class T fuses combine two highly desirable features - high current limitation and a small physical size. Their unique dimensions prevent the substitution of other fuses with lower voltage ratings or current-limiting capability. These fuses have glass melamine bodies for superior dimensional stability and catalog numbers stamped into the blades for permanent identification.

Specifications:

Type: Class T
Characteristics: Fast Acting
Voltage Rating: 300 VAC, 160 VDC
Current Rating: 110 Ampere
Interrupting Rating: 200 Kiloampere (AC), 50 Kiloampere (DC)
Terminal Type: Blade
Diameter: 1.06 Inch
Length: 2.44 Inch
Approval: UL 248/248-15, CSA C22.2
