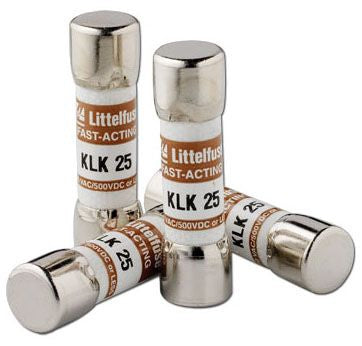

Fast-Acting, High-Interrupting Capacity, Current-Limiting Type Fuse; Especially Suited for Control Circuits, Street Lighting, H.I.D. Lighting, Computers and Other Applications without High Inrush Currents; 100/50 Kiloamp Interrupting Rating; RoHS Compliant

Specifications:

Type: 5AG
Characteristics: Fast Acting
Voltage Rating: 600 VAC/500 VDC
Current Rating: 25 Ampere
Interrupting Rating: 100000 Ampere (AC), 200000 Ampere (Self-Certified), 50000 Ampere (DC)
Terminal Type: Ferrule
Diameter: 13/32 Inch
Length: 1-1/2 Inch
Approval: UL 248-14, CSA, QPL, CE
