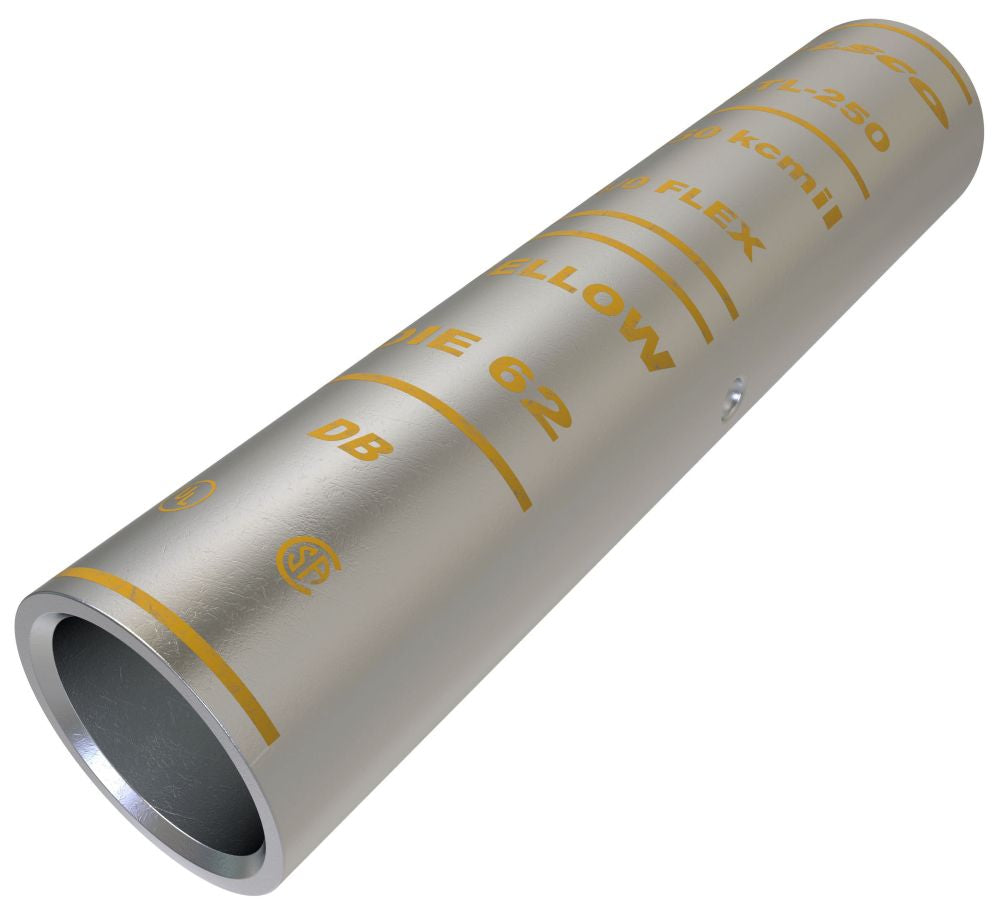

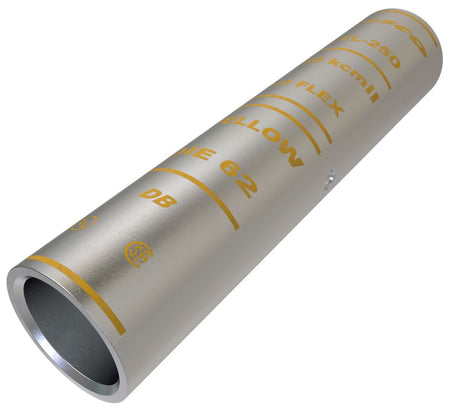

Ilsco CTL-250 Compression Sleeve

Manufactured from High Strength Seamless Copper Tubing; Electro-Tin Plated; Chamfered Entry; Color Coded; Suitable for Use in Circuits Rated 35Kv or Less, Proper High Voltage Spacing and Insulation Techniques Must be Used; UL Listed and CSA Certified with Ilsco and Major Competitors Compression Tools; Rated to 90 Deg C; Offers Maximum Conductivity and Excellent Crimping Characteristics; Provides Low Contact Resistance; for Easy Conductor Insertion; Identifies the Proper Compression Die; Reduces Inventory Requirements; For Grounding and Bonding Applications; Versatility; RoHS Compliant

Specifications:

Type: Center Wire Stop
Voltage Rating: 35 KV
Conductor Size: 250 KCMIL
Conductor Material: Copper
Color Code: Yellow
Barrel Type: Long with Chamfered End
Length: 3.375 Inch
Inner Diameter: 0.593 Inch
Outer Diameter: 0.75 Inch
Body Material: Electro-Tin Plated High Strength Seamless Copper
Approval: UL 453G, UL 486A/B, CSA
